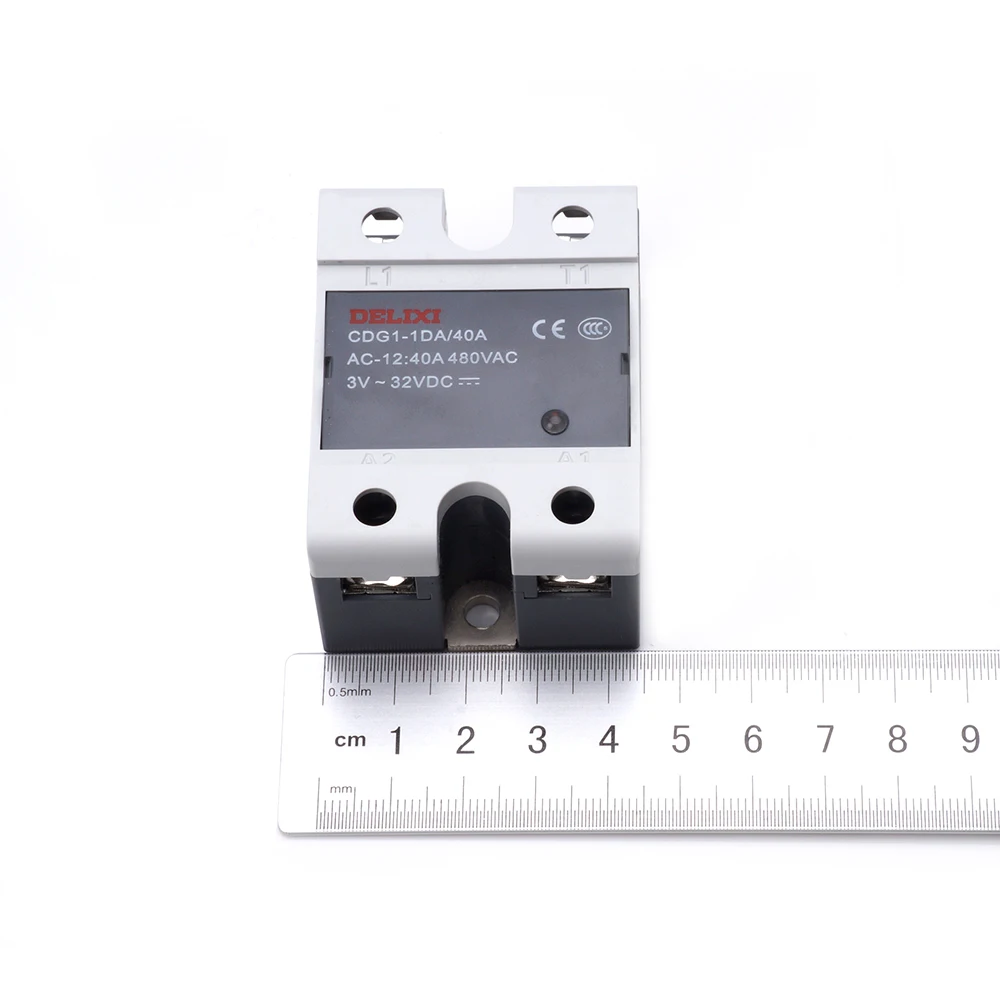

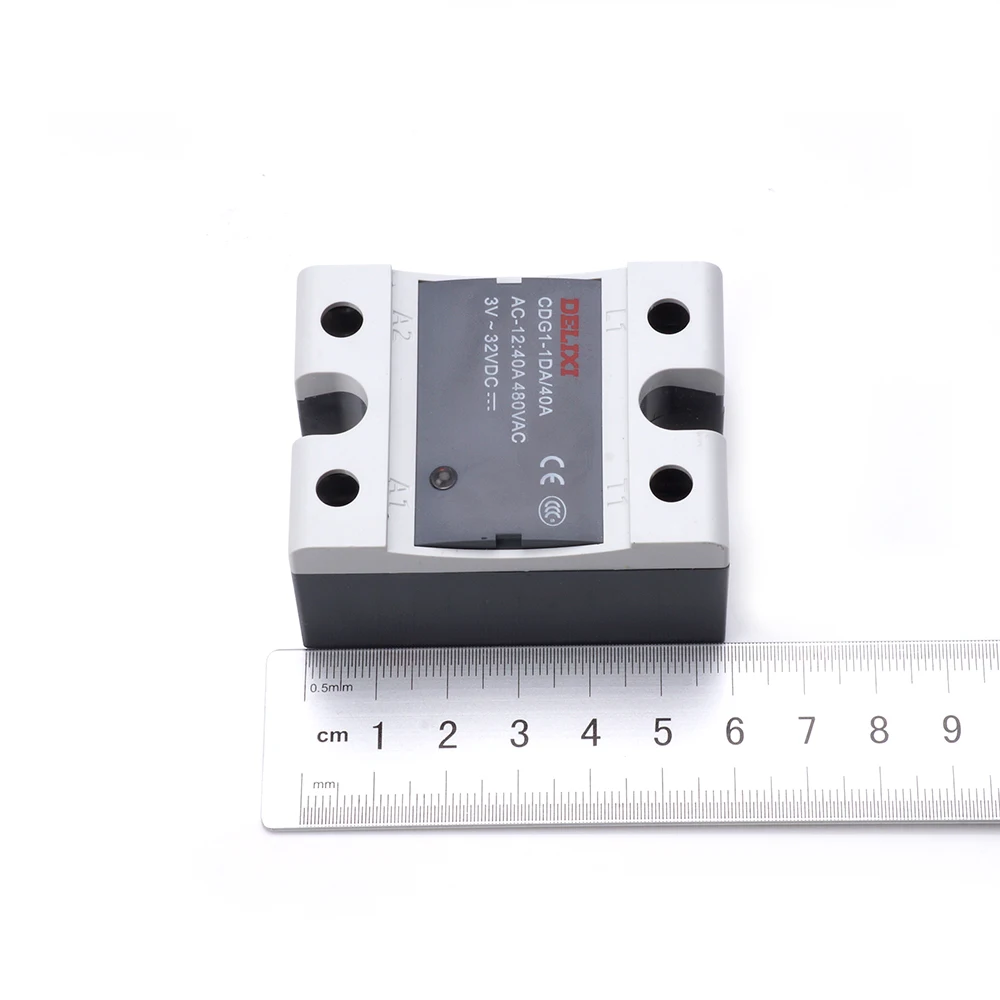

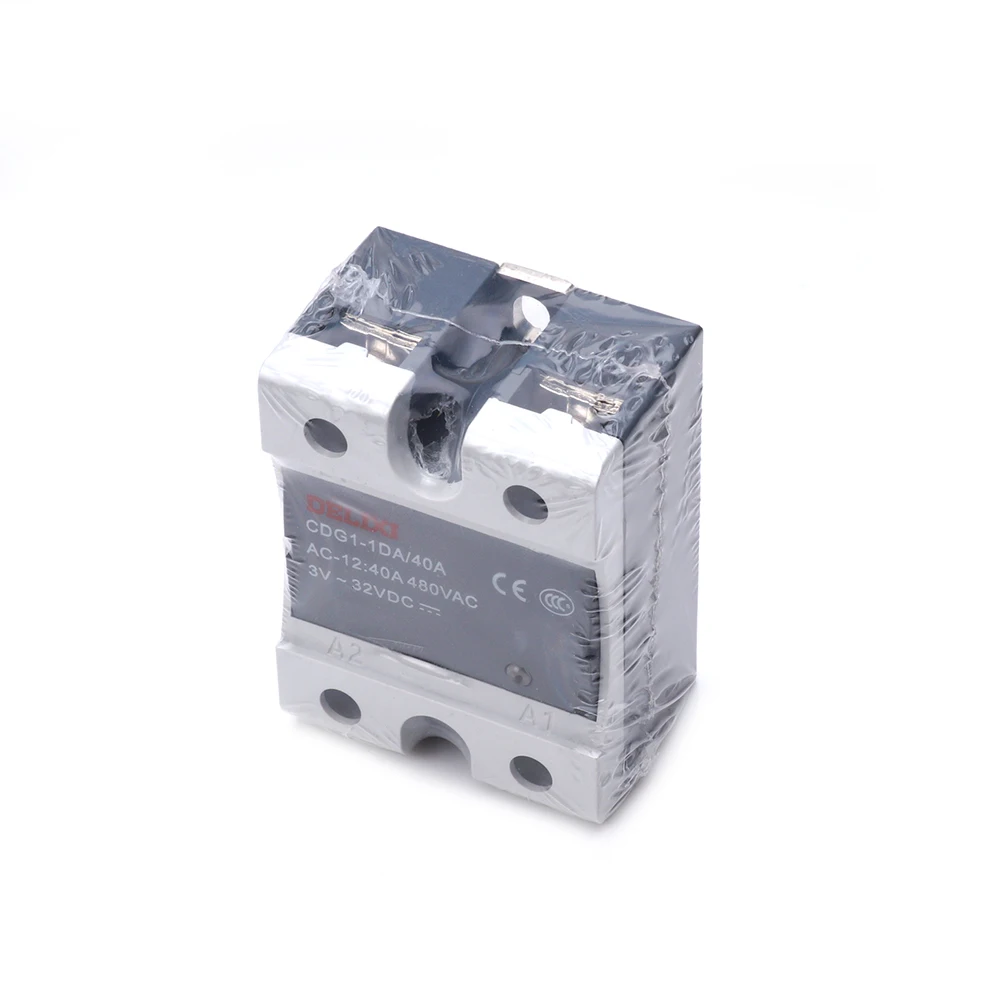

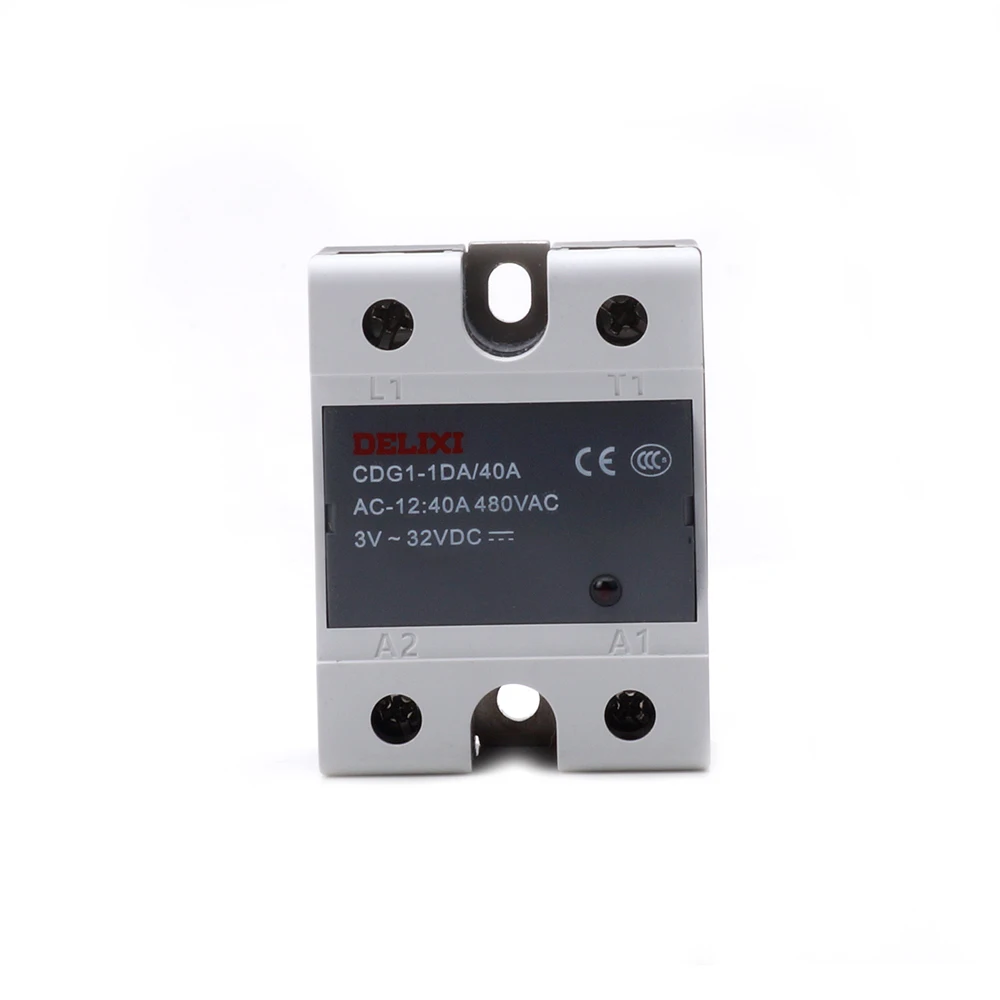

1PC Relay For Delixi Relais Delixi Solid State Relay Single Phase DC Control AC CDG1-1DA 40A D4840 SSR-DA40
01

parameter
Control method: DC control AC (CDG1-1DA), AC control communication (CDG1-1AA), DC control DC (CDG1-1DD)
Output current: 10A, 15A, 20A, 25A, 30A, 40A, 60A, 75A, 80A, 100A, 120A
Input control voltage: 3-32VDC 80-280VAC
Load voltage: 12-220VDC, 24-480VAC
Input control current: <30mA
Off-state leakage current: ≤5mA
Down-state pressure: ≤1.6VAC
On-off time: ≤5ms
Medium pressure: 2500VAC
Insulation resistance: 100m/500VDC
Operating current safety factor: Resistive load: 60% Inductive load: 30%
Electric life: ≥ 1 million times

Features
From the shell, electronic circuit board, flame-retardant engineering plastic shell, metal cooling floor,

SCR composition.

Special optocoupler isolation, stable and reliable operation, fast switching speed,

High operating frequency, long service life,

Low noise, low power consumption, beautiful appearance, easy installation and use.
Working conditions
Ambient temperature: -30°C-70°C
Supply voltage range: 85% to 110%
Elevation: ≤2000 meters
Installation Category: II
Installation conditions
When using a load current higher than 10A, the radiator must be used and must be in the solid state relay

Apply thermal grease between the low heat sink and the mounting surface of the heat sink. Cool the fan over 60A.

Package listing:
1 pc relay
