$61.96
$57.00
2pcs 4-lead Nema17 Stepper Motor 42 motor Extruder Gear Stepper Motor Ratio 5.18:1 Planetary Gearbox For QR Extruder Cloned Btech Size:42*70mm Shaft:"D" 16mm*Ø8mm Motor leads:1M Dupont Wire for detailed parameters,see...
2pcs 4-lead Nema17 Stepper Motor 42 motor Extruder Gear Stepper Motor Ratio 5.18:1 Planetary Gearbox For QR Extruder Cloned Btech Size:42*70mm Shaft:"D" 16mm*Ø8mm Motor leads:1M Dupont Wire for detailed parameters,see...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 100 In Stock

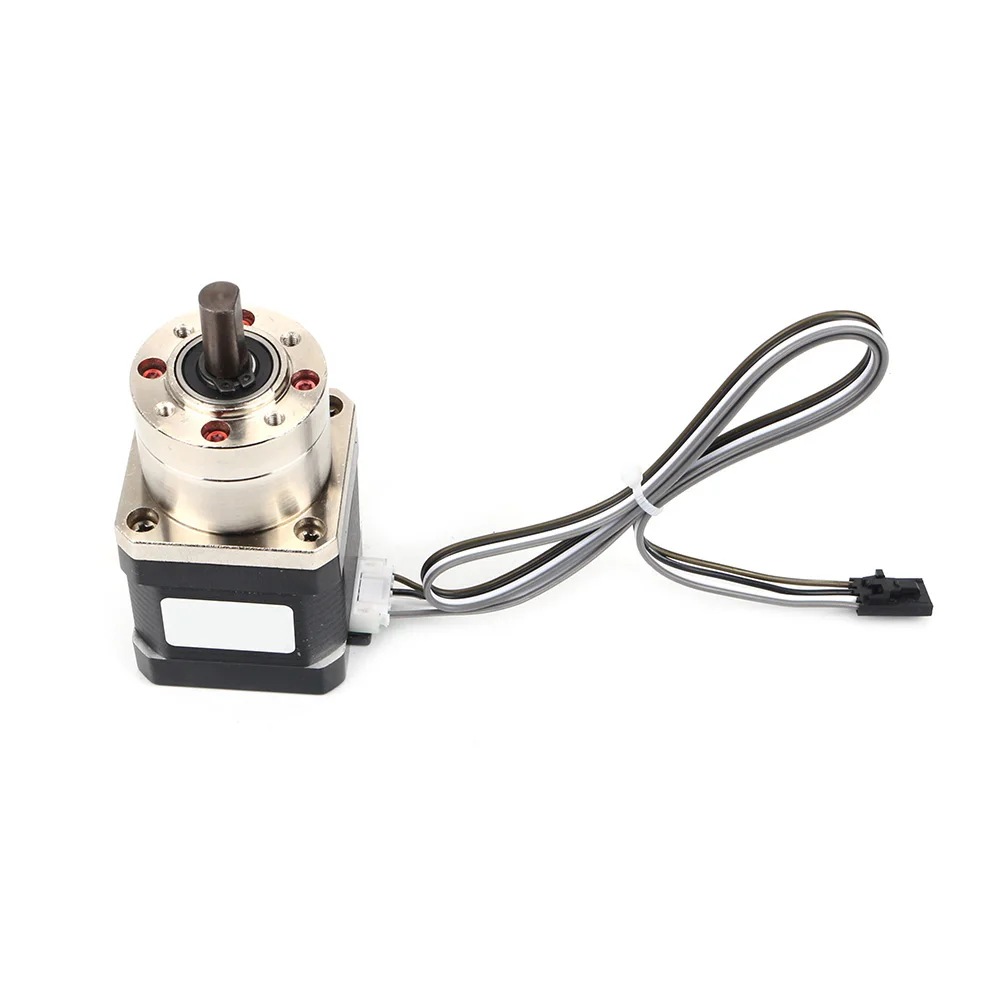

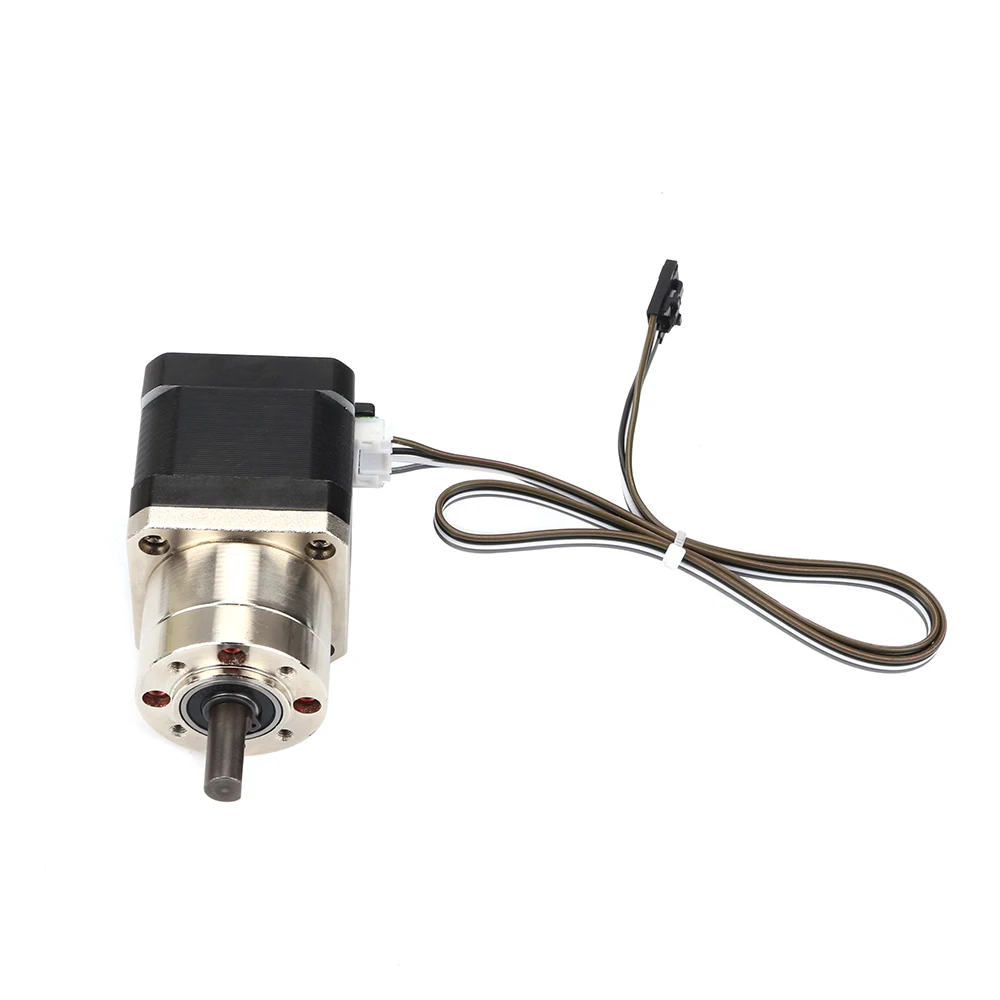

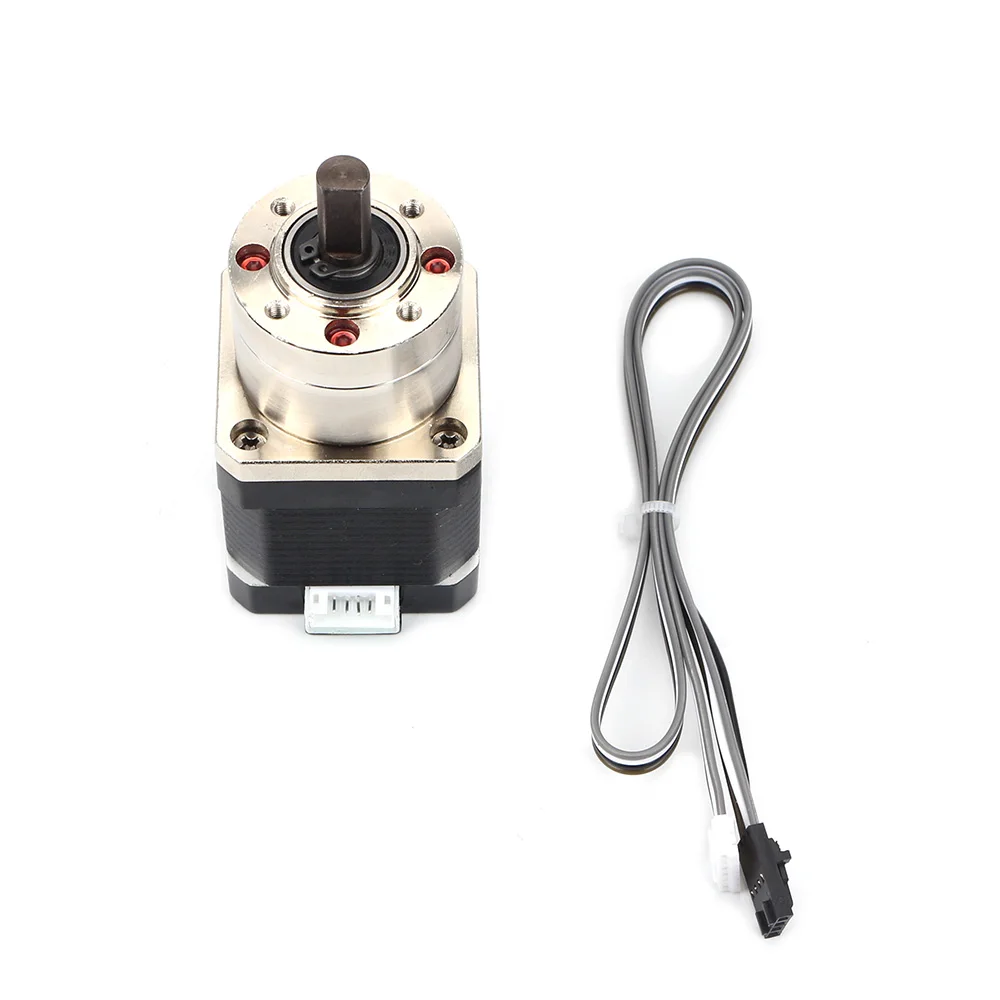

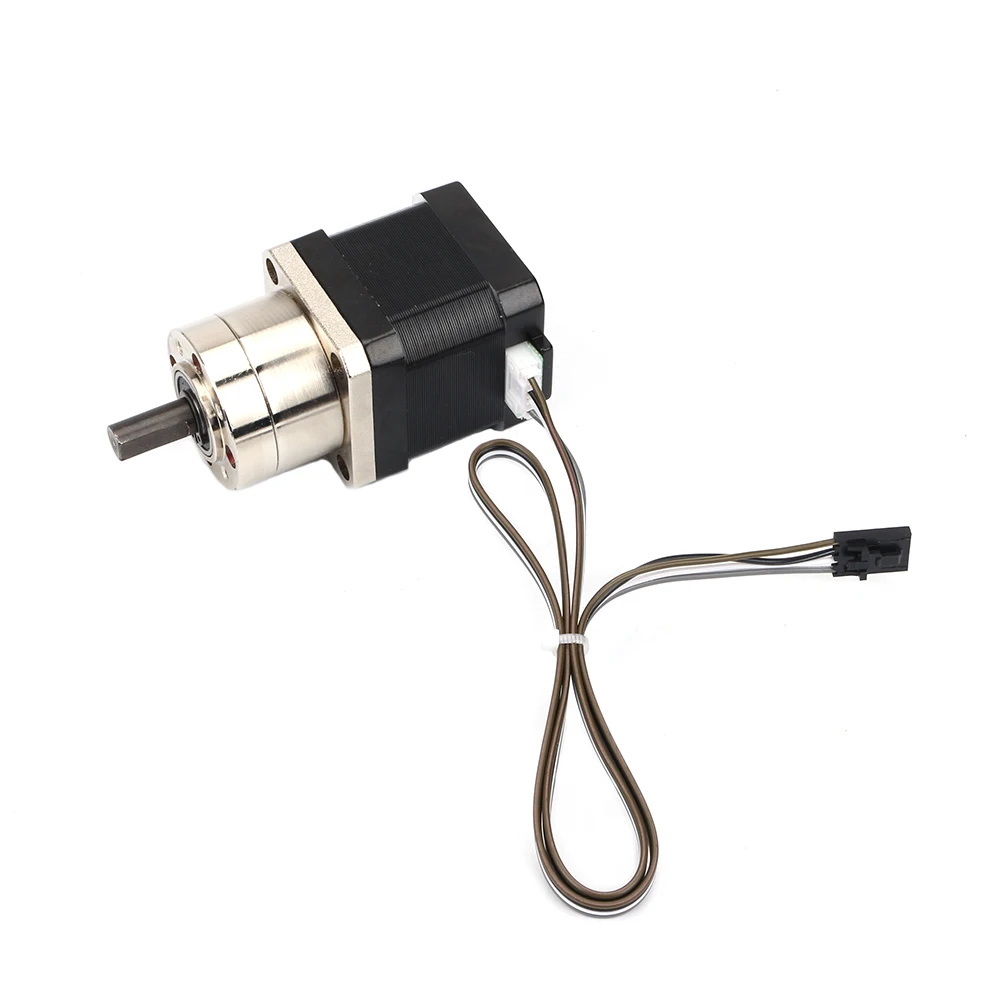

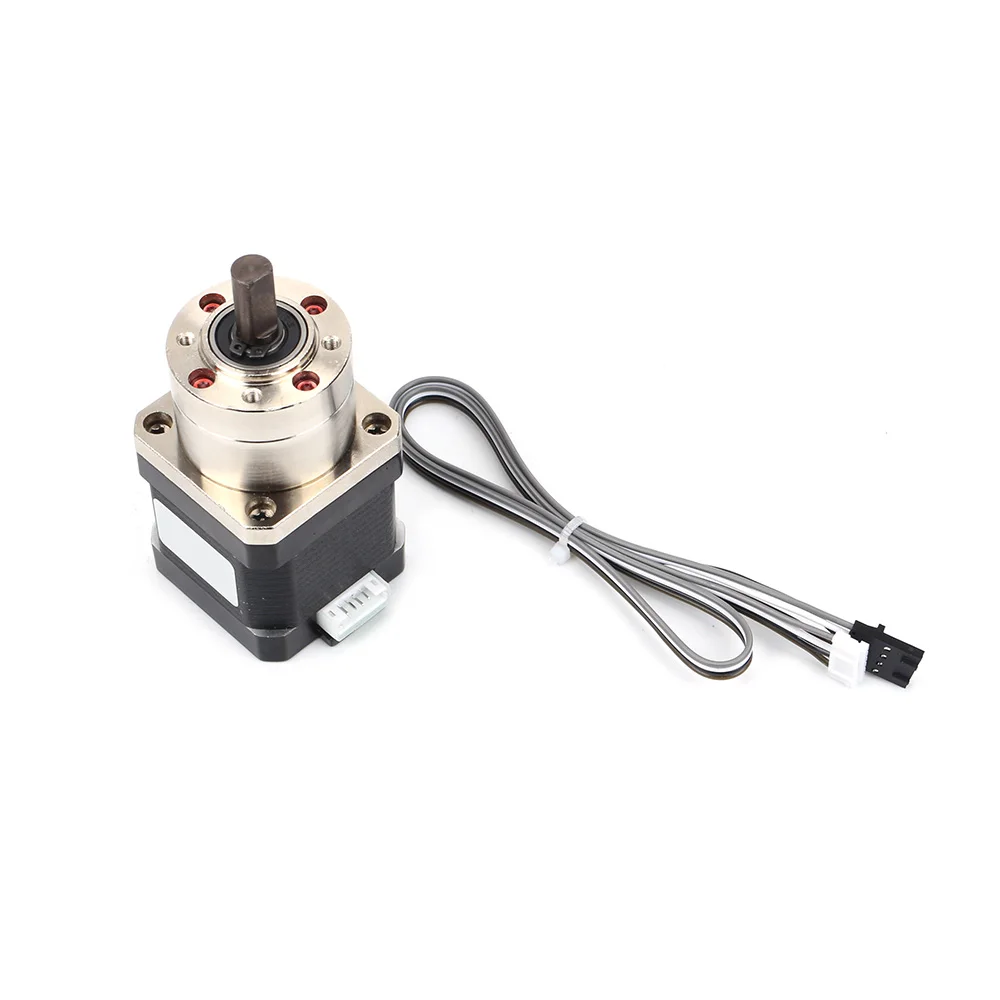

2pcs 4-lead Nema17 Stepper Motor 42 motor Extruder Gear Stepper Motor Ratio 5.18:1 Planetary Gearbox For QR Extruder Cloned Btech
01
Size:42*70mm
Shaft:"D" 16mm*Ø8mm
Motor leads:1M Dupont Wire
for detailed parameters,see the parameter table
Parameter
Manufacturer Part Number 17HS15-1684S-PG5
Motor Type Bipolar Stepper
Step Angle(W/O Gearbox) 1.8°
Holding Torque 230N.cm
Rated Current/phase 1.68A
Phase Resistance 1.65ohms
Recommended Voltage 12-24V
Inductance 3.2mH±20%(1KHz)
Gearbox Type Planetary
Gear Ratio(Exact Gear Ratio) 5 + 2/11
Efficiency 90%
Backlash at No-load <=1°
Max.Permissible Torque 2Nm(283oz-in)
Moment Permissible Torque 4Nm(566oz-in)
Shaft Maximum Axial Load 50N

Shaft Maximum Radial Load  100N

Package listing:

2pcs nema 17 stepper motor


02
IMG_0869 IMG_0870 IMG_0871 IMG_0872 IMG_0876 IMG_0877 IMG_0878 IMG_0879






2pcs 4-lead Nema17 Stepper Motor 42 motor Extruder Gear Stepper Motor Ratio 5.18:1 Planetary Gearbox For QR Extruder Cloned Btech
01
Size:42*70mm
Shaft:"D" 16mm*Ø8mm
Motor leads:1M Dupont Wire
for detailed parameters,see the parameter table
Parameter
Manufacturer Part Number 17HS15-1684S-PG5
Motor Type Bipolar Stepper
Step Angle(W/O Gearbox) 1.8°
Holding Torque 230N.cm
Rated Current/phase 1.68A
Phase Resistance 1.65ohms
Recommended Voltage 12-24V
Inductance 3.2mH±20%(1KHz)
Gearbox Type Planetary
Gear Ratio(Exact Gear Ratio) 5 + 2/11
Efficiency 90%
Backlash at No-load <=1°
Max.Permissible Torque 2Nm(283oz-in)
Moment Permissible Torque 4Nm(566oz-in)
Shaft Maximum Axial Load 50N

Shaft Maximum Radial Load  100N

Package listing:

2pcs nema 17 stepper motor


02
IMG_0869 IMG_0870 IMG_0871 IMG_0872 IMG_0876 IMG_0877 IMG_0878 IMG_0879
