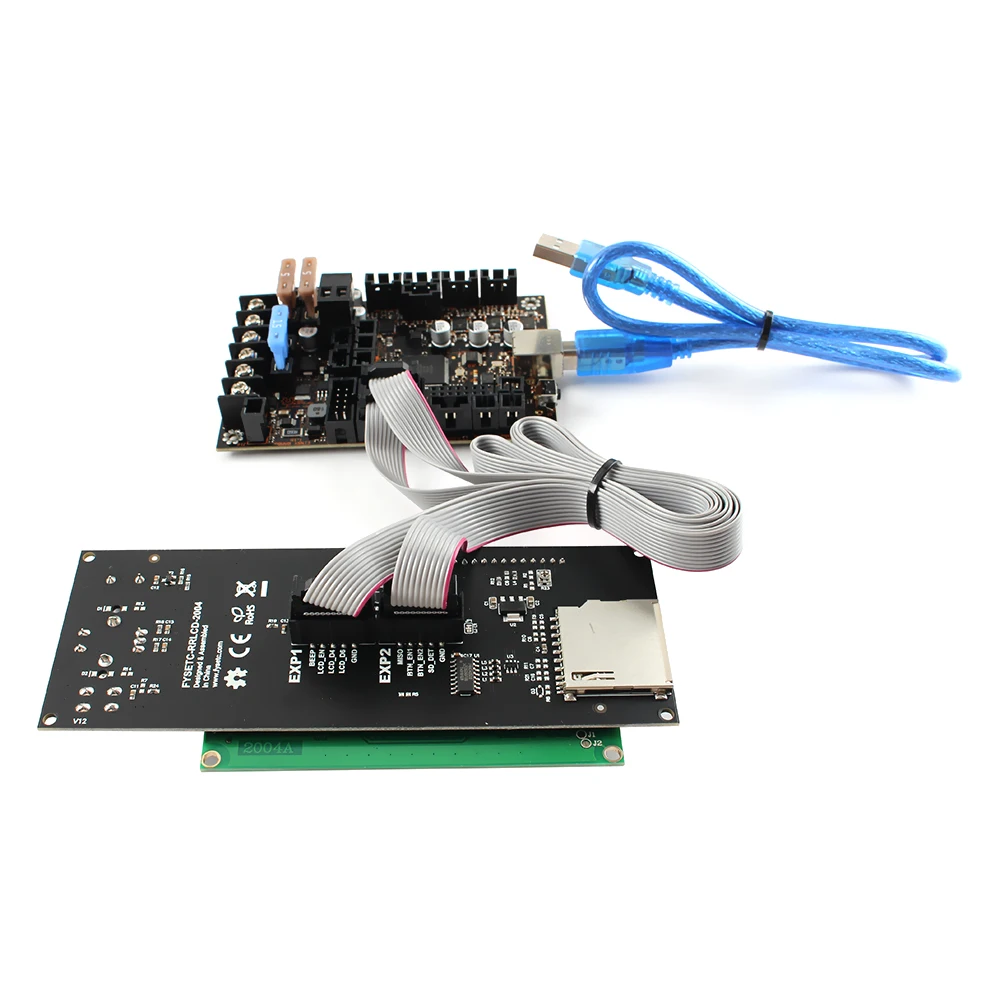

EinsyRambo 1.1b Mainboard For Prusa i3 MK3 With 4 Trinamic TMC2130 Control 4 Mosfet Switched Outputs + 2004 LCD Display
Features Logic For Arduino MEGA compatible Atmega2560 and Atmega32u2 processors are compatible with all RAMPS class firmware Crystals for both usb and mcu (timing accurate to 10ppm) 3 Thermistor jacks + 4th Thermistor circuit on ZProbe. Motor Drivers 4 Trinamic TMC2130 1/256th microstep motor drivers(2 connectors on Z for Prusa Mendel and other dual Z printer designs) SPI Control of stepper current instead of PWM. Microstep mode configured by MCU through firmware (SPI, no jumpers needed) PWM DC outputs (Extruders, Fans, Etc.) 4 outputs (1 Extruder, 1 BED, 2 low power (fan,etc) Low resistance mosfets for cool running Indicator led for each channel FANS have 3pin fan connector. FANS have 5V instead of 12-24V power source. FAN connectors have tachometer feedback pin to the MCU to measure fan speed in capable firmware. Power 2 power input rails Heated Bed, 15A 12-24V (15A dedicated fuse) Primary Power 10A 12-24V: Motors, Logic & Fans (5A dedicated fuse) + Extruder (5A dedicated fuse) Built in SMPS for 5V generation from the Motors, Logic & Fans rail Provides 5V power to FANS Connectors 4-pin motor,zprobe plug - Molex 5057-9404 3-pin fan plug - Molex 5057-9403 2-pin thermistor, mech. endstop plug - Molex 5057-9402 2004LCD Display Brand new and high quality. This smart controller contains a SD-Card reader, an rotary encoder and a 20 character x 4 line LCD display. You can easy connect it to your Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don't need your pc any more, the smart controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the smart controller Print your 3D designs without PC, just with a g-code design stored on the SD card. Firmware: You need Marlin firmware v3 or newer. If you are using older firmware, you must re-flash your board. Size: 15cm x 5.8cm Package list: 1pc EinsyRambo 1.1b 1pc USB 1pc 2004 LCD 2pc Cable 4pcs black heat sink
