Availability: 100 In Stock

F5 V1.2 Control Board Replace BASE 1.4 & Ramps 1.4 Controller Board + Generic 12864 Panel V1.1 Smart 12864LCD Module Display

01

F5 Characteristic:

1. working voltage: 19-24V, Max 10A
2. master IC: ATMEL's ATMEGA2560 16AU
3. CH340 USB interface
4. integrated 5pcs A5984 stepper motor drivers
5. with two heating ends, supporting dual-color printing (the highest temperature according to the hotend)
6. circuit board uses high-quality 4 laminates
7. with 4 MOSFET tubes, one of which is used to heat up the bed
8. 24V port with 5A/10A/15A for recovery fuse protection
9. there are two power input ports and one for hotbed.
10. based on the Arduino platform to support many firmware and software.

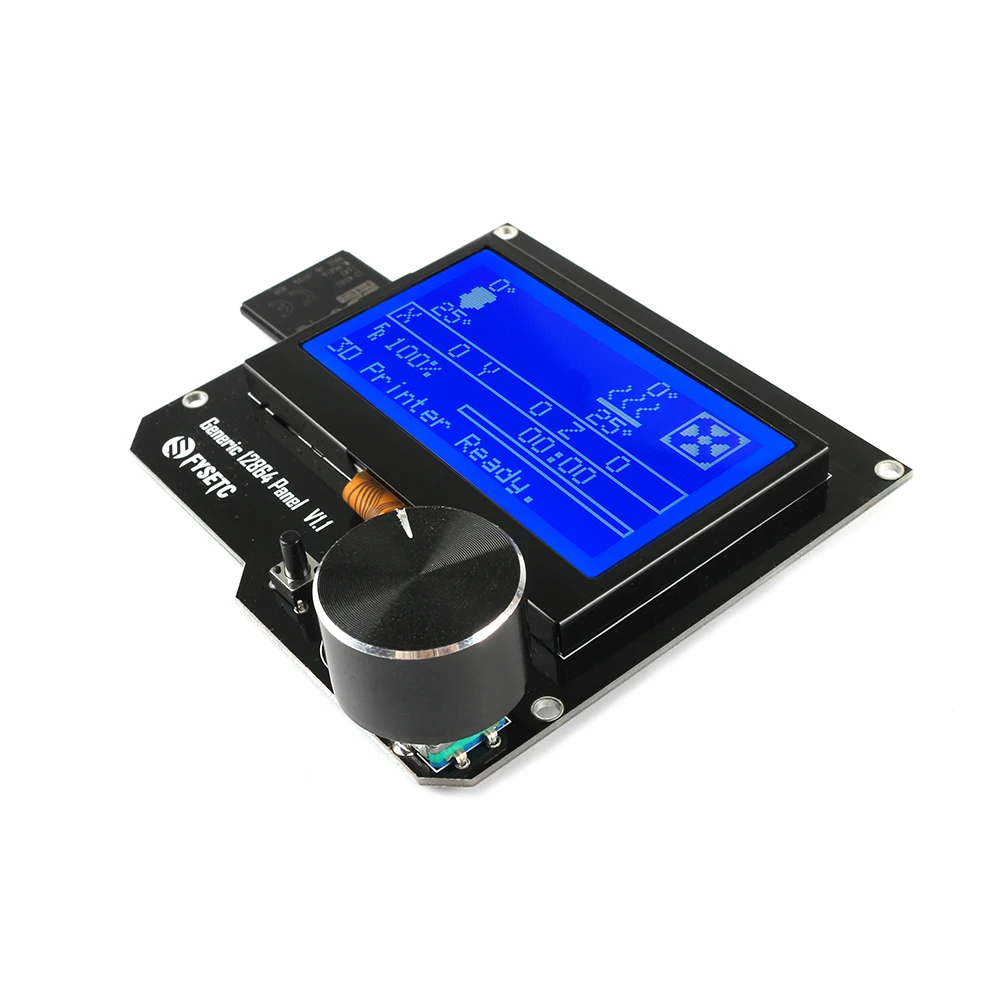

Generic 12864 :

This is a opensouce, cheap, with RGB indicator, common to marlin's display, supports offline printing, resolution is 12864, display area is 3.2'', SD card holder can be side or vertical, Dimensional compatible with REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER, Software compatible with MINIPANEL in marlin firmware.

Available in a single backlight color version, also available in RGB backlight (NEOPIXEL_LED)version.Choose according to your preferences!

Features:
3.2" inch high contrast Graphic LCD,Dimensional compatible with REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER
Black-gray/black-green/white-black/white-blue/green-black, 5 display styles,it is white-blue
SPI communication to host micro-controller
Support Vertical or side SD slot with card detect,with a optional SD module
Software configurable contrast setting
3D printable case and mount STL file
Configurable RGB backlight, WS2811 single line control.
Black background or transparent backgroun.
The extra EXP3 is 12864P or a motherboard that requires a single display function.
Application:
3D printer,CNC machines ,Other micro controller projects

More information about the display,pls refer our wiki
https://wiki.fysetc.com/Generic_12864_Panel/


Package include:
1 x F5 board
1 x 12864 LCD controller (SD card not included)
1 x USB
2 x Cable

02
