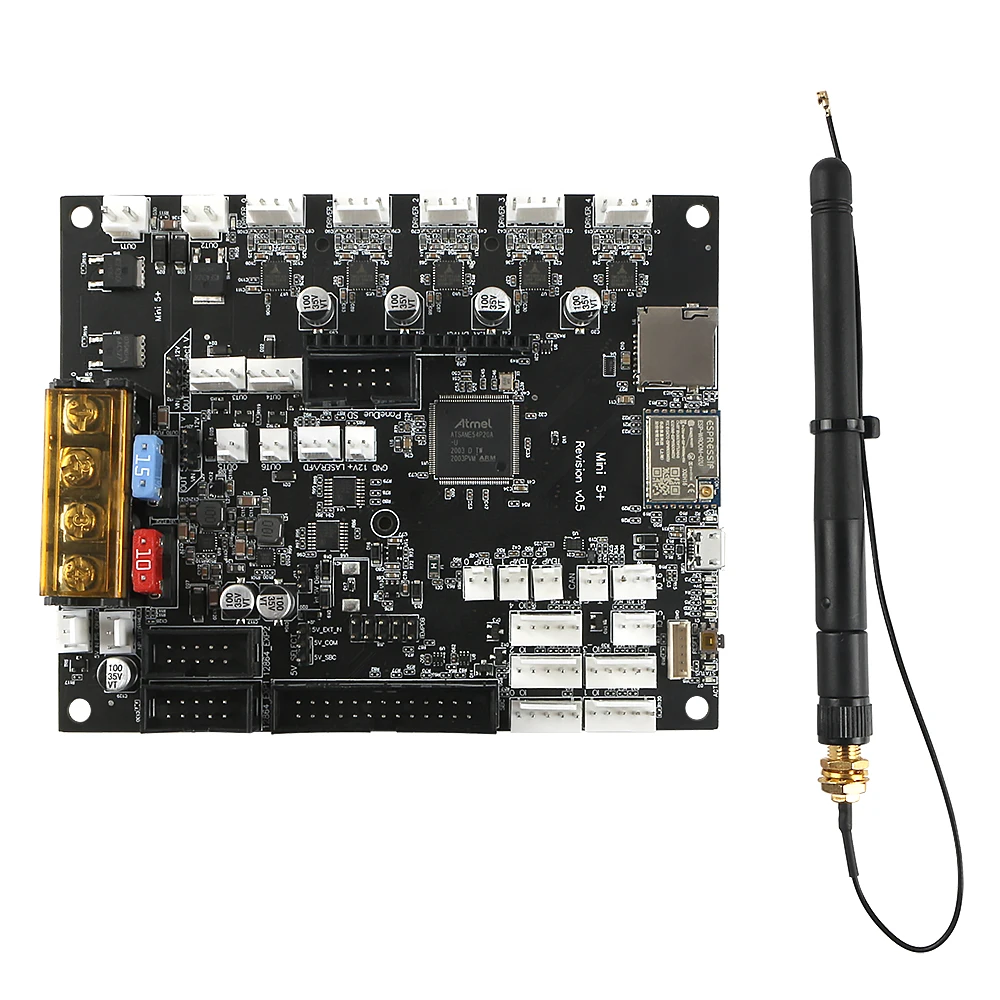

FYSETC Clone Duet 3 Mini 5+ Wifi Board 3d Printer Control Board DuetWifi Advanced 32bit Motherboard For 3D Printer CNC Machine
FEATURES: Powerful 32 Bit Processor (ARM Cortex M4 @120Mhz) Both Wifi and Ethernet versions Dedicated High speed bus to a single board computer (e.g. Raspberry Pi) for the user interface and plugins 5 Trinamic 2209 stepper drivers running at up to 1.4A RMS, 2A peak with firmware control of the full feature set including up to 256 microstepping, StallGuard 2 and StealthChop2 CAN-FD bus that supports the next generation of Duet3D expansion boards, smart tools and custom addons. 7 PWM outputs of varying current capacities support a high current heated bed, 2 extruders and 4 fans. 7 IO ports for endstops, probes, filament monitors and other sensors. 3 Thermistor/PT1000 inputs and support for 2 PT100 or thermocouple inputs via the optional daughterboards. Set up your printer and update the firmware through the web interface. All common 3D printer geometries are supported Support for a wide range of Z probes including DC42’s IR Z probe and the Duet3D Smart Effector for delta printers.
