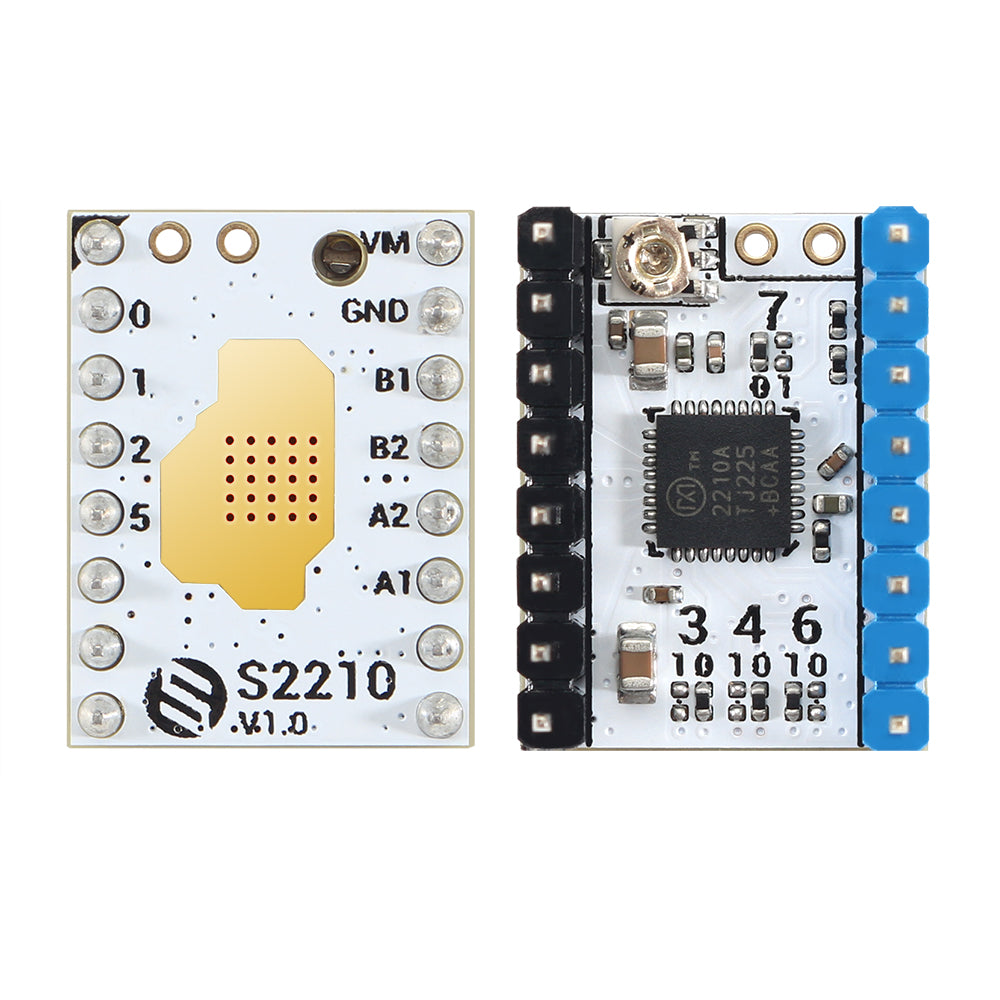

FYSETC 5pcs S2210 Drivers Upgraded TMC2210 Driver Up to 2.1A (RMS) & 3.0A(PEAK) Coil Current for 3D Printer Parts Ultra Silent

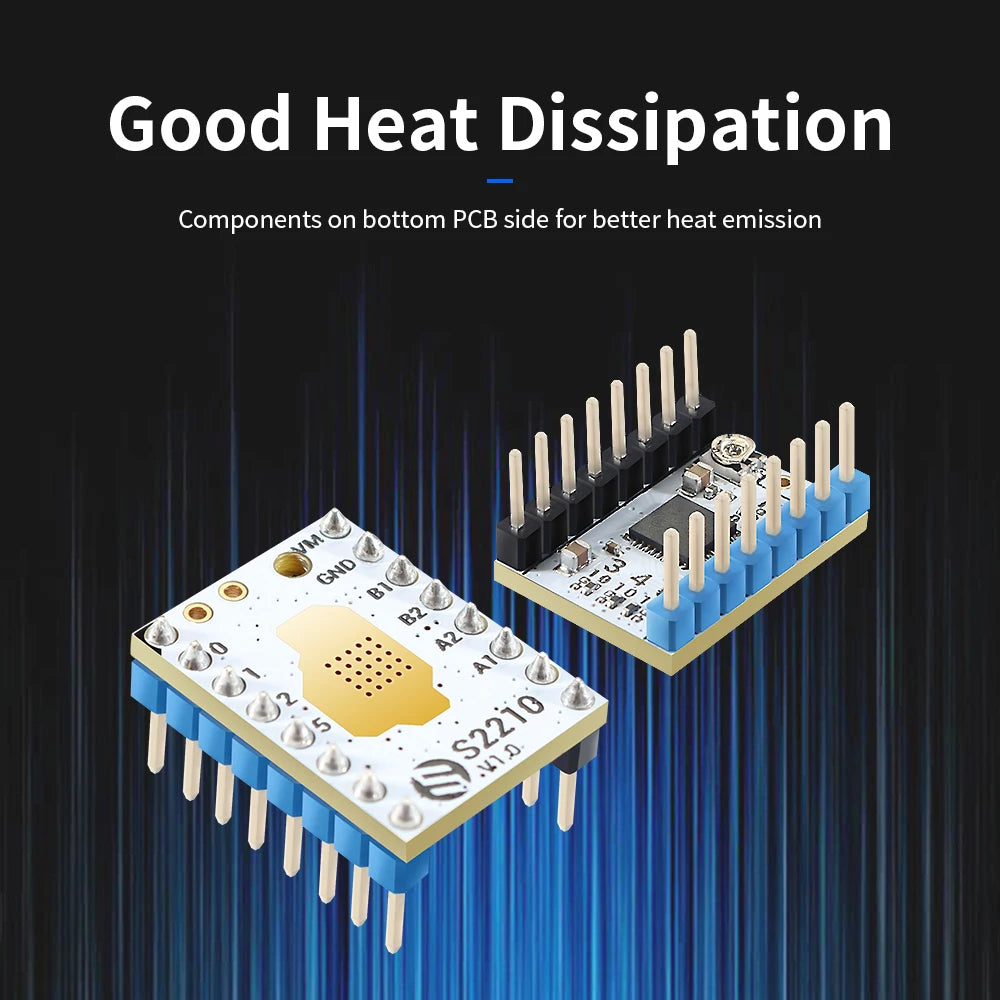

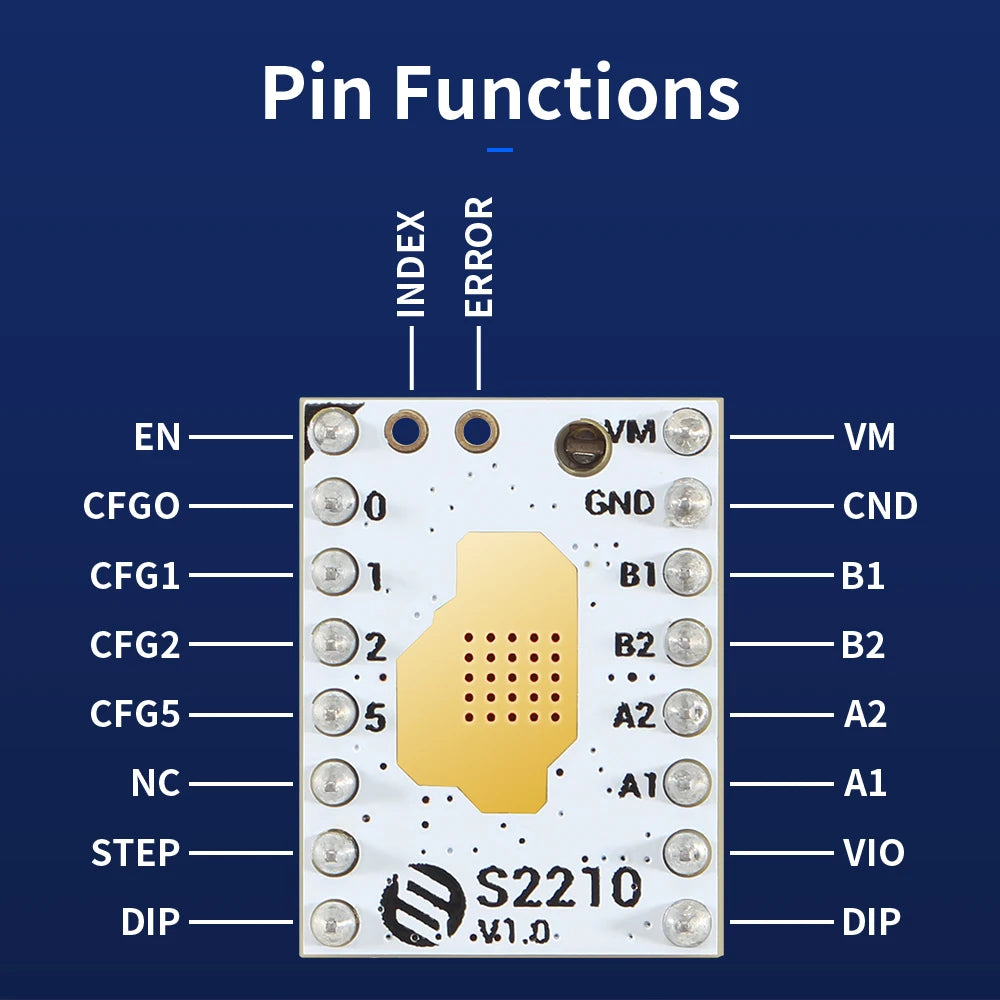

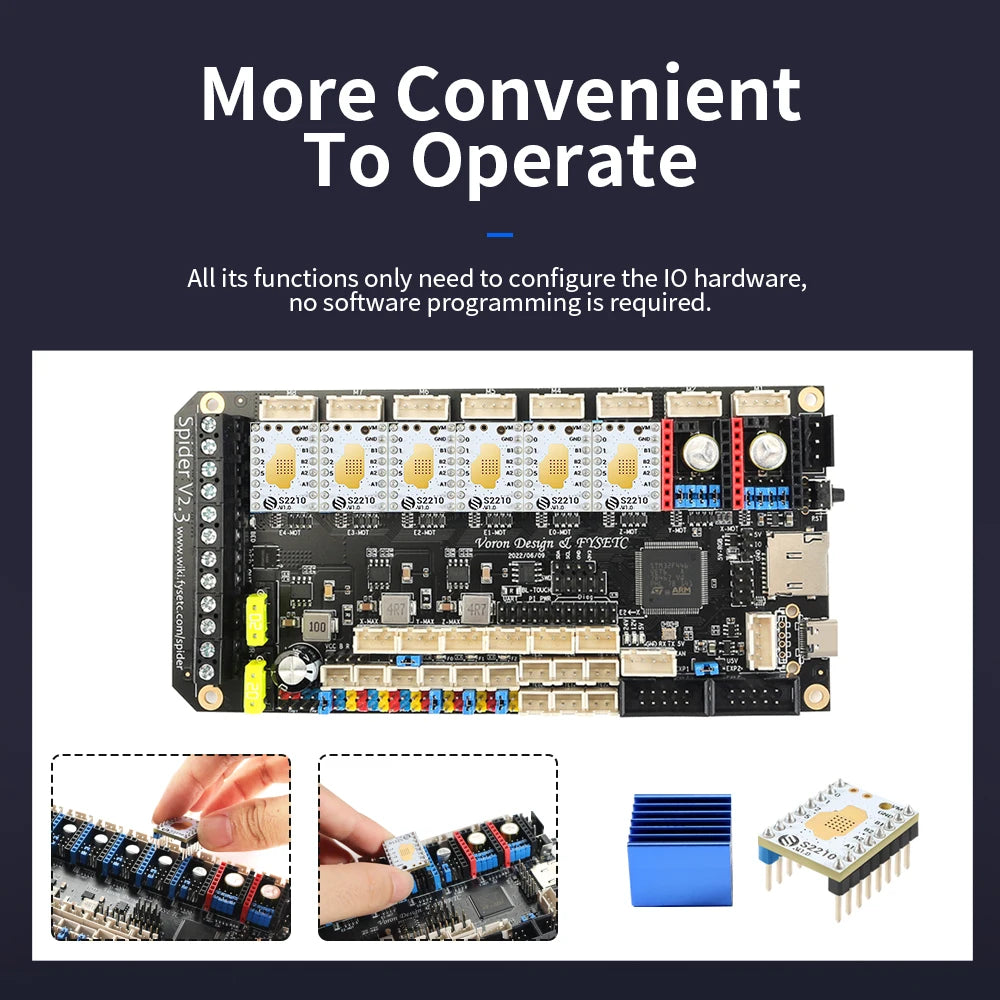

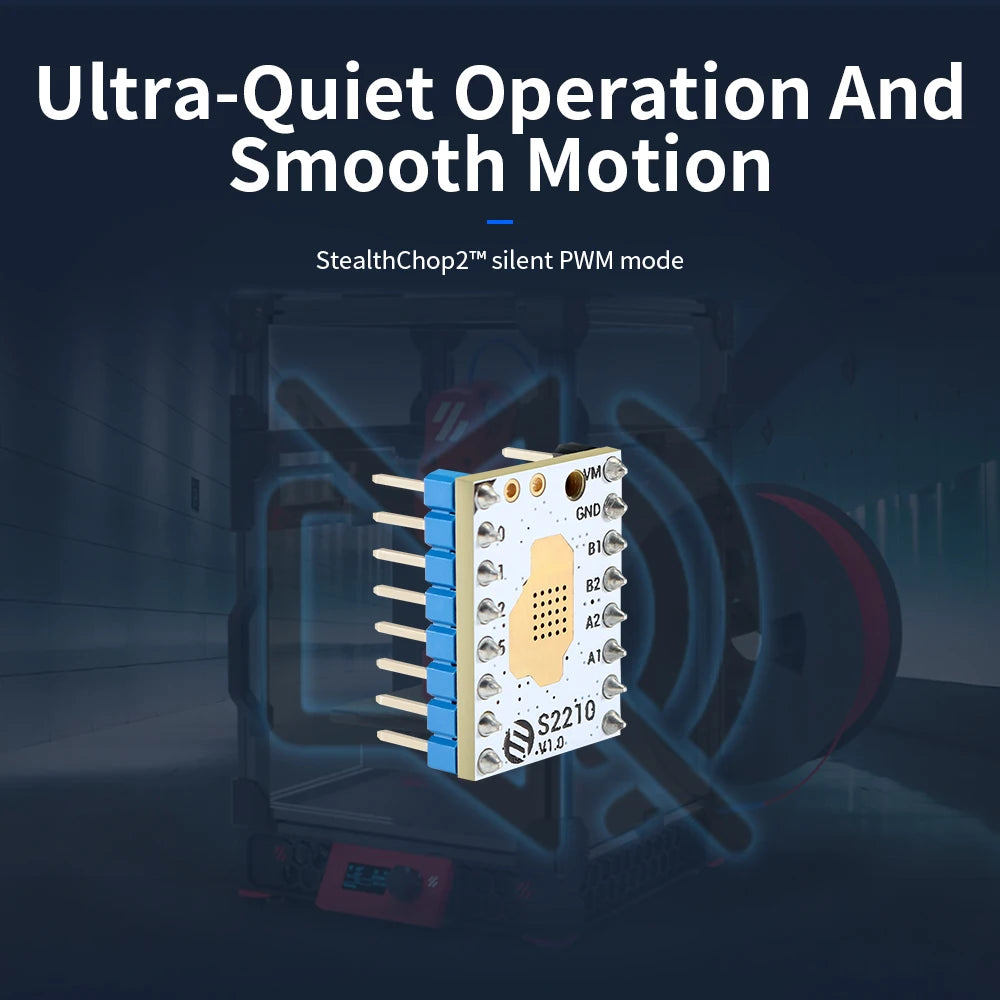

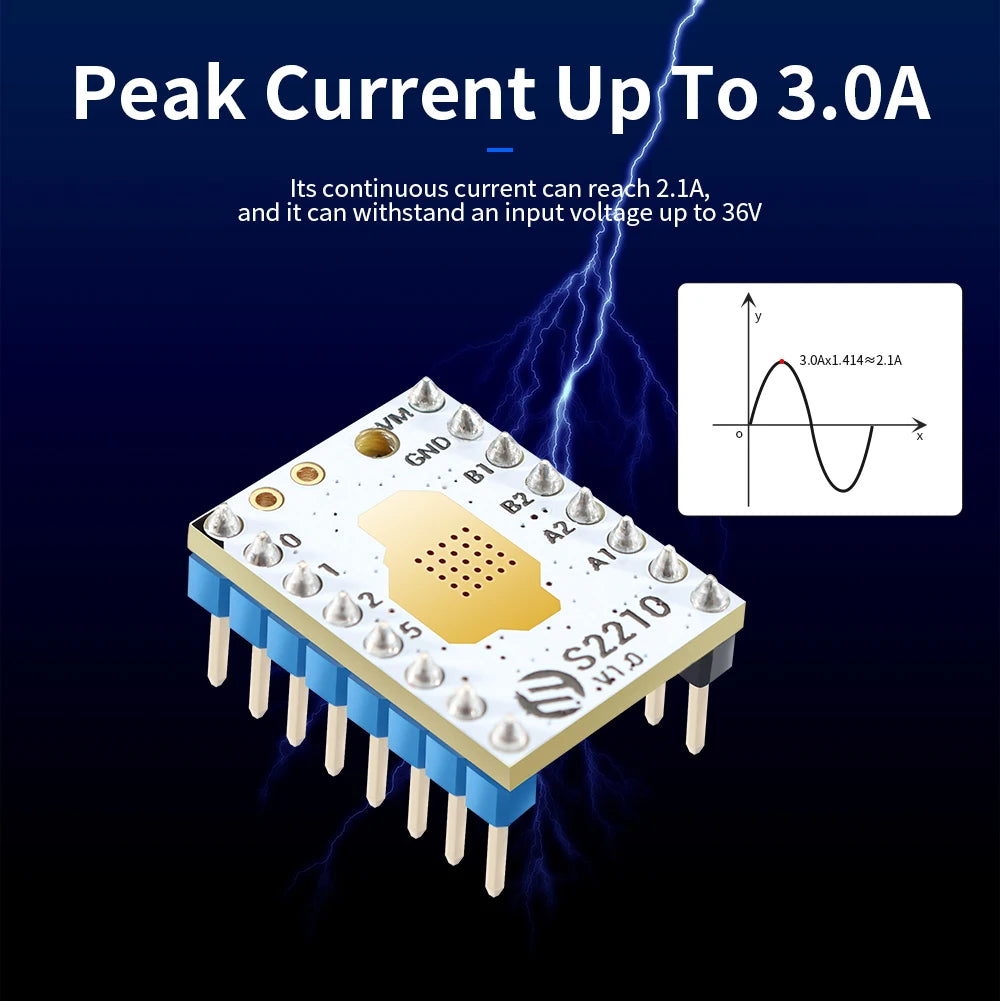

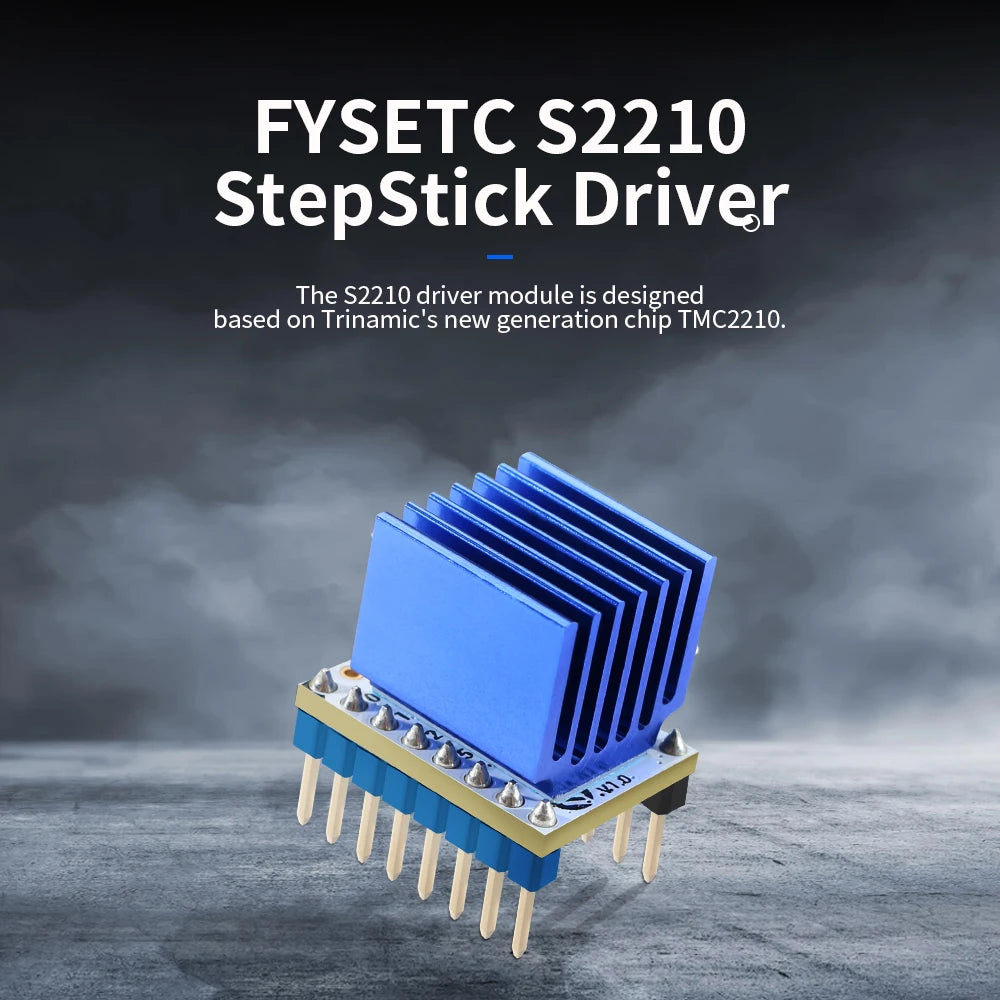

## About the Product The S2210 driver module is designed based on Trinamic's new generation chip TMC2210. Thanks to the brand-new architecture and process, its peak current can reach 3.0A, its continuous current can reach 2.1A, and it can withstand an input voltage up to 36V. TMC2100. All its functions only need to configure the IO hardware, no software programming is required. ## Features 1.Hardware compatible with StepStick and Pololu A4988 Stepper Driver 2.Components on bottom PCB side for better heat emission 3.Automatic standby current reduction 4.StealthChop2™ silent PWM mode- for quiet operation and smooth motion 5.SpreadCycle - highly dynamic motor control chopper 6.Drive capability up to 2.1A (RMS) & 3.0A(PEAK) coil current 7.Step/Dir interface with microstep interpolation (up to 256 microsteps) 8.Input microsteps 1-64 optional 9.Configuration via CFG pins 10.Supply voltage 4.5-36V
More info：https://github.com/FYSETC/S2210
