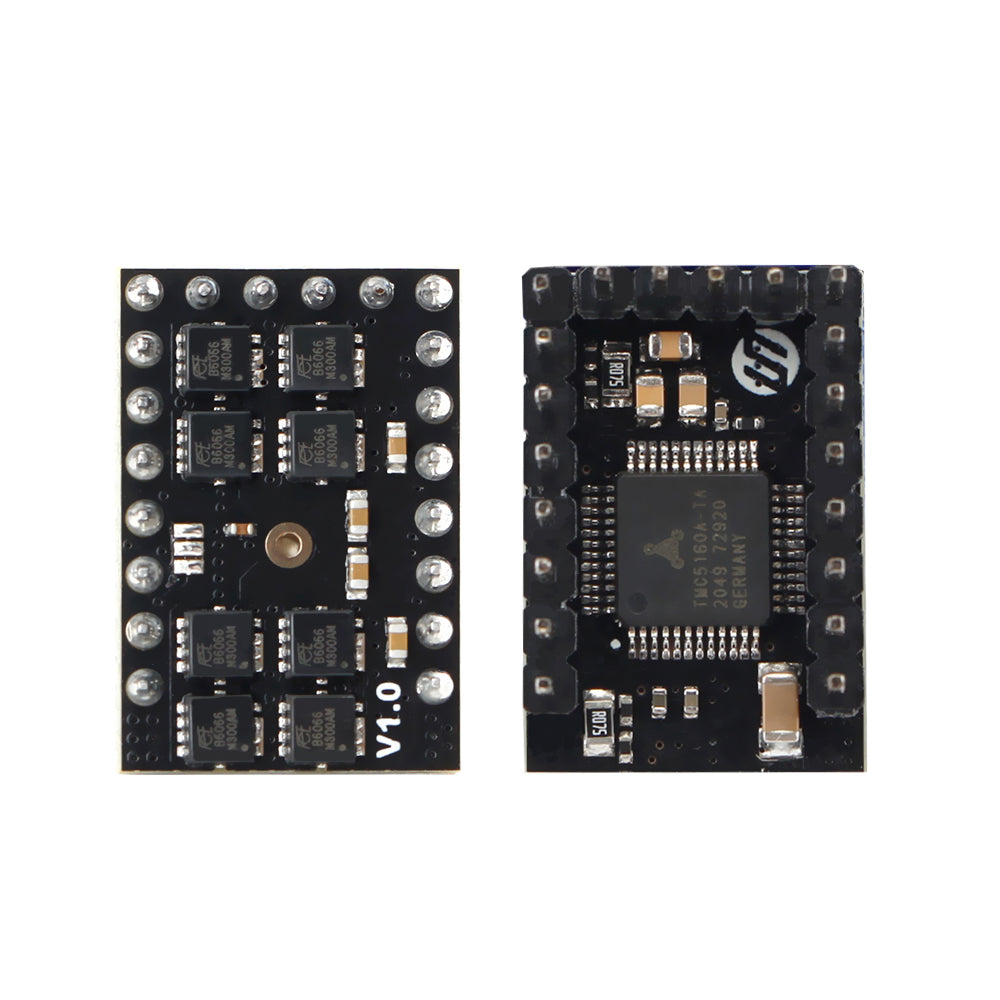

TMC5160 HV Stepper Step Stick SPI Silent Motor Driver High Power Maximum voltage 60V Upgraded 3D Printer Parts

!!! warning
If you use 48V to power the VMOT of the module and 24V step-down to power the VIO, please make sure that 48V and 24V are turned on at the same time (that is, VMOT and VIO arrive at the same time). Otherwise, the drive module may **burn out**.
!!!

- HV5160 was renamed to QHV5160
- Change the original 4 MOSFEts to 8 mosFEts
- TMC-5160-WA、TMC-5160-TA
- Hv5160 is specially designed for high voltage drive requirements and can work in the voltage range of 8-60v, such as 48V.
- The 100V X7R 0805 ceramic capacitor based on tmc5160-wa and Samsung Electronics is designed.
- 1000 x 600mil / 25.4 x 15.24mm
- 6 layer TG155 PCB
- 8-60V 3.0A (rms) / 4.2A (peak)
- 4x DMT6018 (17 mΩ)

- Step/Dir interface & SPI mode default
- Compatible with Stepstick Pins
- Encoder Interface pinout
- DIAG output for sensorless homing
- Comes with blue aluminum heat sink
