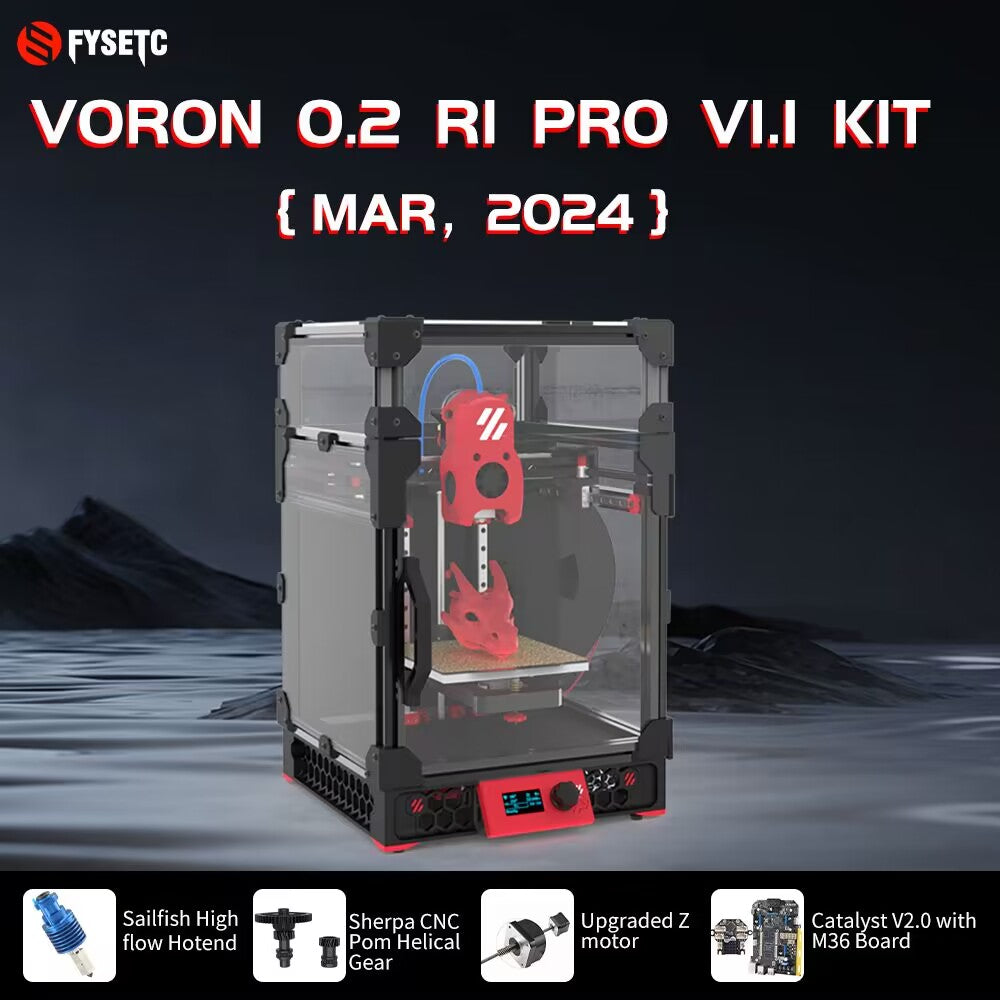

Voron 0.2 R1 V1.1 Pro CoreXY 3D Printer Kit with CNC Gantry mini Stealthburner Upgraded CATALYST Motherboard Best Quality Parts

::: coupon
有效期：coupon
适用条件：
金额：30$
券码：2511FXXBAMDR
:::

!!! note After ordering, customers from EU and US countries will have their goods shipped from overseas warehouses, arrive in 3-5 days, and there is no TAX.
!!!
## What we upgraded？【March 2024】：

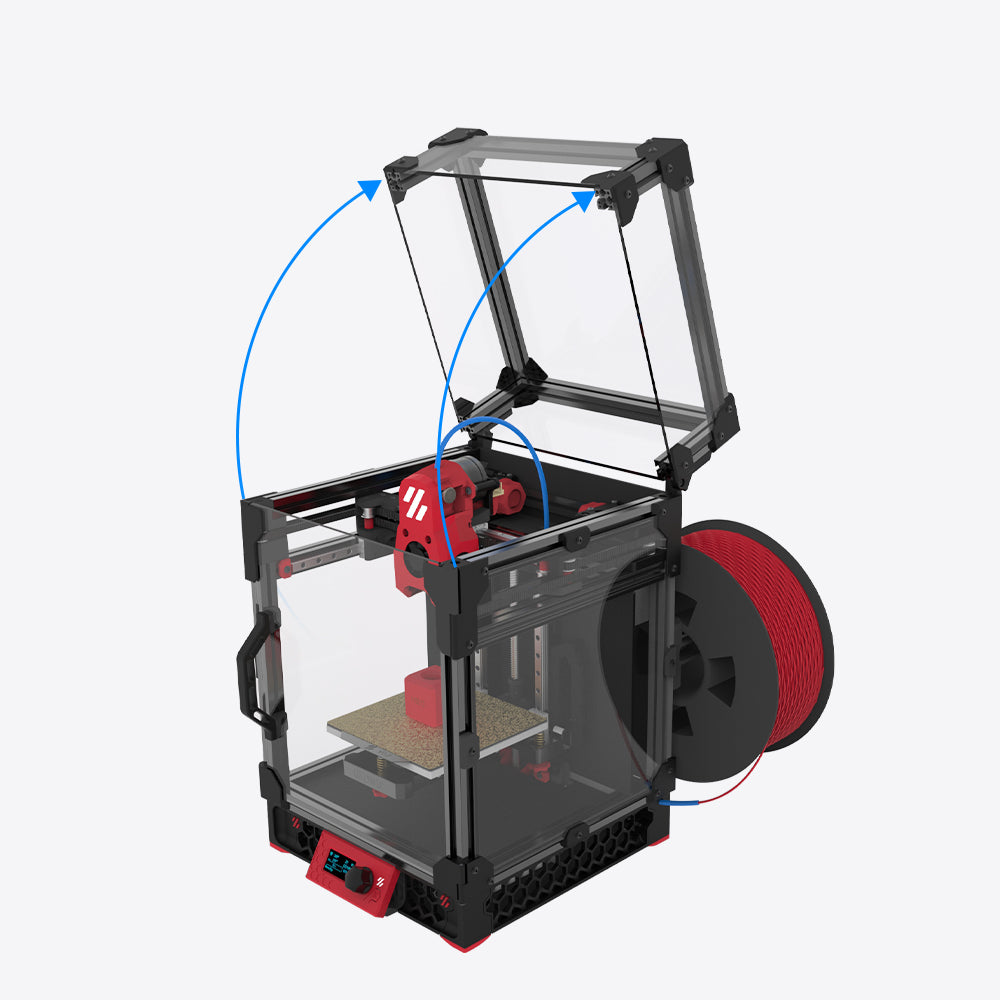

1. The top cover is raised to 100mm to increase the head space.

2. The mainboard and tool board are upgraded to Catalyst_Kit_V2.0 and M36, with added functions and good performance.

3. Add nozzle LED lights to provide better lighting for the box

4. The linear rail is made of lightly preloaded Z1 stainless steel, with smaller slider clearance and higher precision.

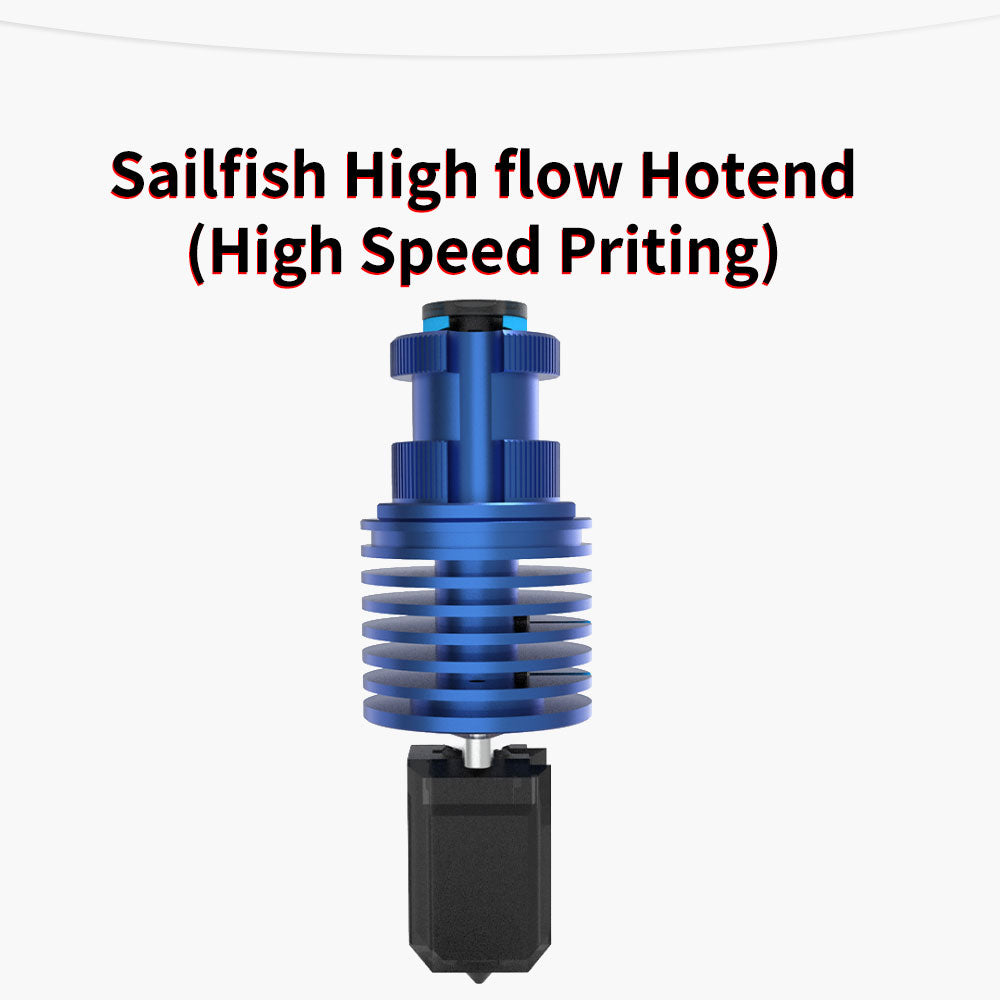

5. The extrusion head is upgraded to the swordfish extrusion head, which has higher extrusion flow and improved printing speed.

6. Upgrade Sherpa integrated nano-hardened steel gears with better concentricity, higher precision and more wear resistance

7. Adding 2.5 inner diameter Teflon tube can reduce feeding resistance

8. Upgrade the Z-axis motor to increase current and torque.


## Basic parameters

**1. Mechanical structure:**

- Frame: aluminum box structure

- Printing platform: MIC6 thickened aluminum plate + elastic powder steel plate

**2. Print parameters:**

- Printing technology: FDM

- Forming size: 120x120x120mm

- Print layer height: 0.05-0.3mm (use 0.4mm nozzle)

- Maximum printing speed: 250mm/s (recommended printing speed 20-150mm/s)

- Consumable Diameter: 1.75mm

- Nozzle diameter: 0.4mm

- Filament type: PLA, ABS, PETG, PLA-CF carbon fiber, PETG-CF carbon fiber, TPU, HIPS, Wood, fluorescent Filaments, transparent Filaments, etc. Provide default print parameters)

**3. Temperature:**

- Maximum extruder temperature: 260°C (higher if using the all-metal version)

- Maximum temperature of hot bed: 120℃

**4. Software parameters:**

- Supported formats: STL, G-Code, AMF, OBJ

- Input method: WiFi, ETH

- Operating software: Simplify3D, PrusaSlicer, Cura, Repetier-Host

- Operating system: WINDOWS/MAC OS/LINUX

- Wi-Fi: support

**5. Motherboard**

- Motherboard: CheetahV3.0

- Display: Voron 1.3-inch OLED display

**6. Power supply (MEAN WELL LRS-150-24):**

- Input: 110/220V, 150W

- Output: 24V 6.5A

**7. Dimensions & weight**

- Machine size: 240x242x382mm

- Package size: 465x305x175mm

- Machine net weight: 6KG
- Github BOM:https://github.com/FYSETC/FYSETC-Voron-0.2-Pro/blob/main/0.2%20R1%20V1.1/BOM.md

**8.Official website**
Official website: https://vorondesign.com/voron0.2
Official: https://github.com/VoronDesign/Voron-0/tree/Voron0.2
