$17.99
FYSETC is a professional supplier of 3D Printers related accessories products. It has a professional R&D team and high quality after-sales service to ensure that you can enjoy your shopping....
FYSETC is a professional supplier of 3D Printers related accessories products. It has a professional R&D team and high quality after-sales service to ensure that you can enjoy your shopping....
Availability:
Out Of Stock
FYSETC is a professional supplier of 3D Printers related accessories products. It has a professional R&D team and high quality after-sales service to ensure that you can enjoy your shopping.

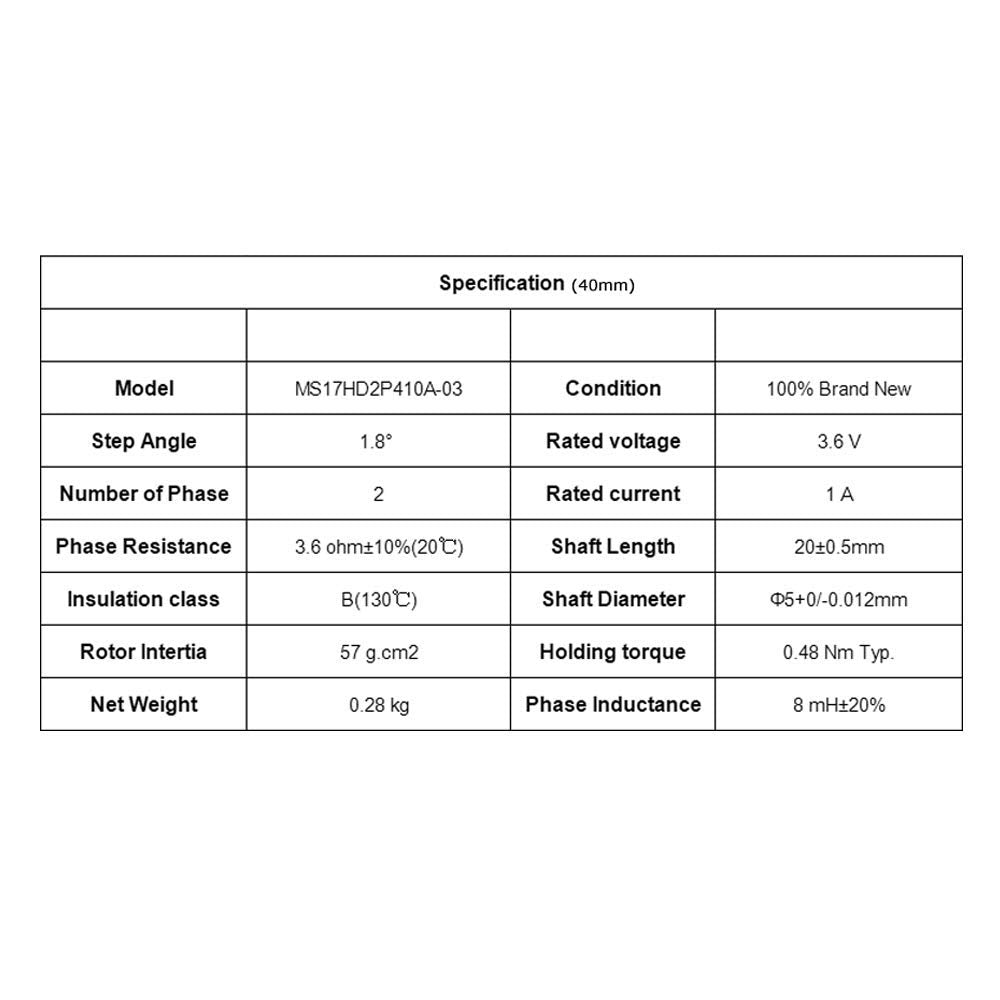

Specifications:
Model Type: MS17HD4P410A-03
Condition: 100% brand new
Number of phase: 2
Step angle: 1.8 degree
Rated Voltage: 3.6 V DC
Rated Current: 1 A
Holding Torque: 0.48 Nm Typ.(Two phase on/rated current)
Phase Resistance: 3.6 ohm+-10%(20℃）
Phase Inductance: 8 mH+-20%(1kHz 1V rms)
Rotor Inertia: 38 g.cm2
Motor Weight: 0.23 kg
Insulation Class: B(130℃)

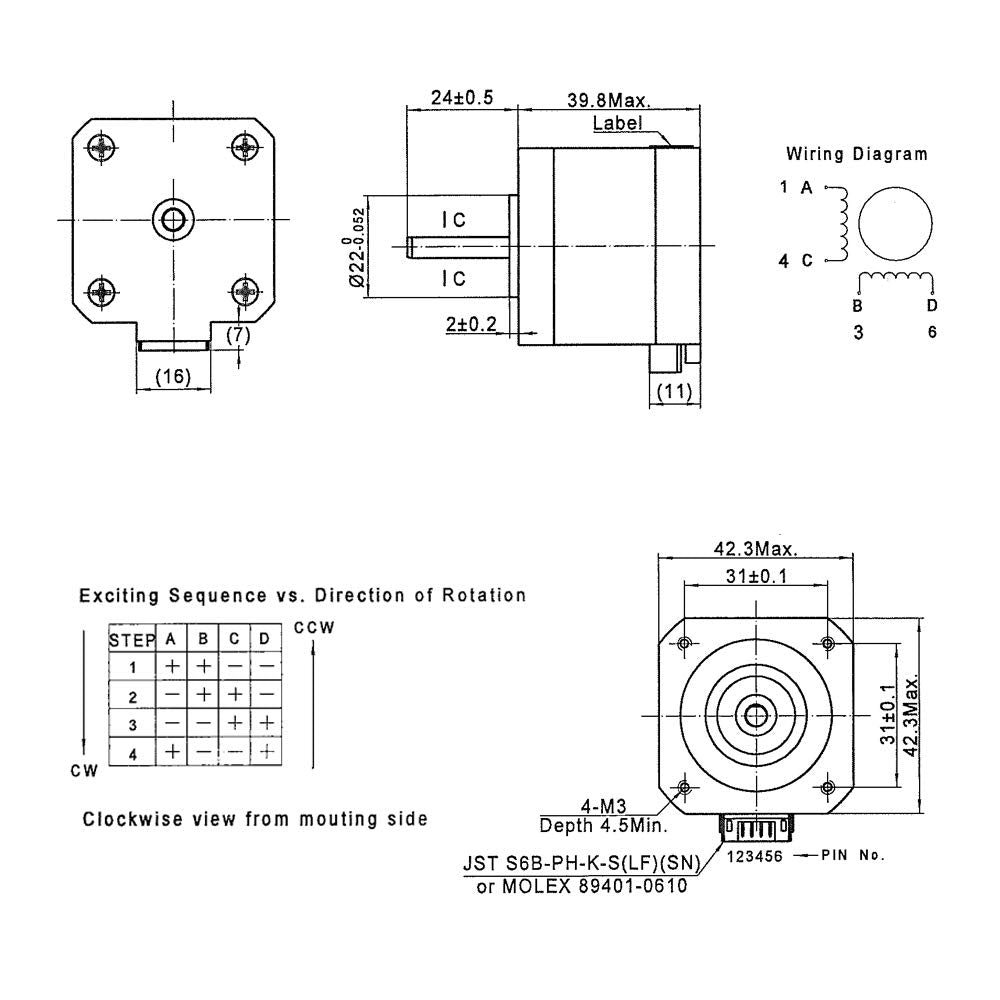

Connection:
Yellow(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
Package Included:

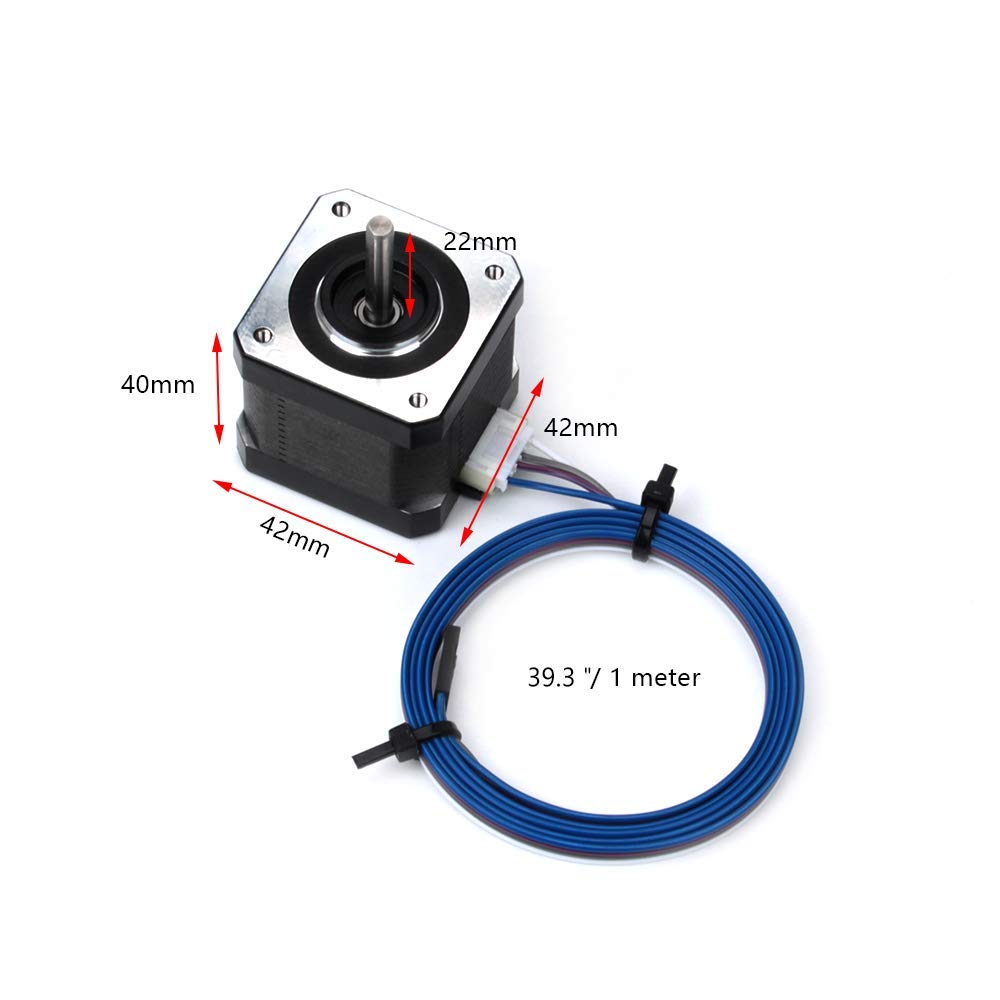

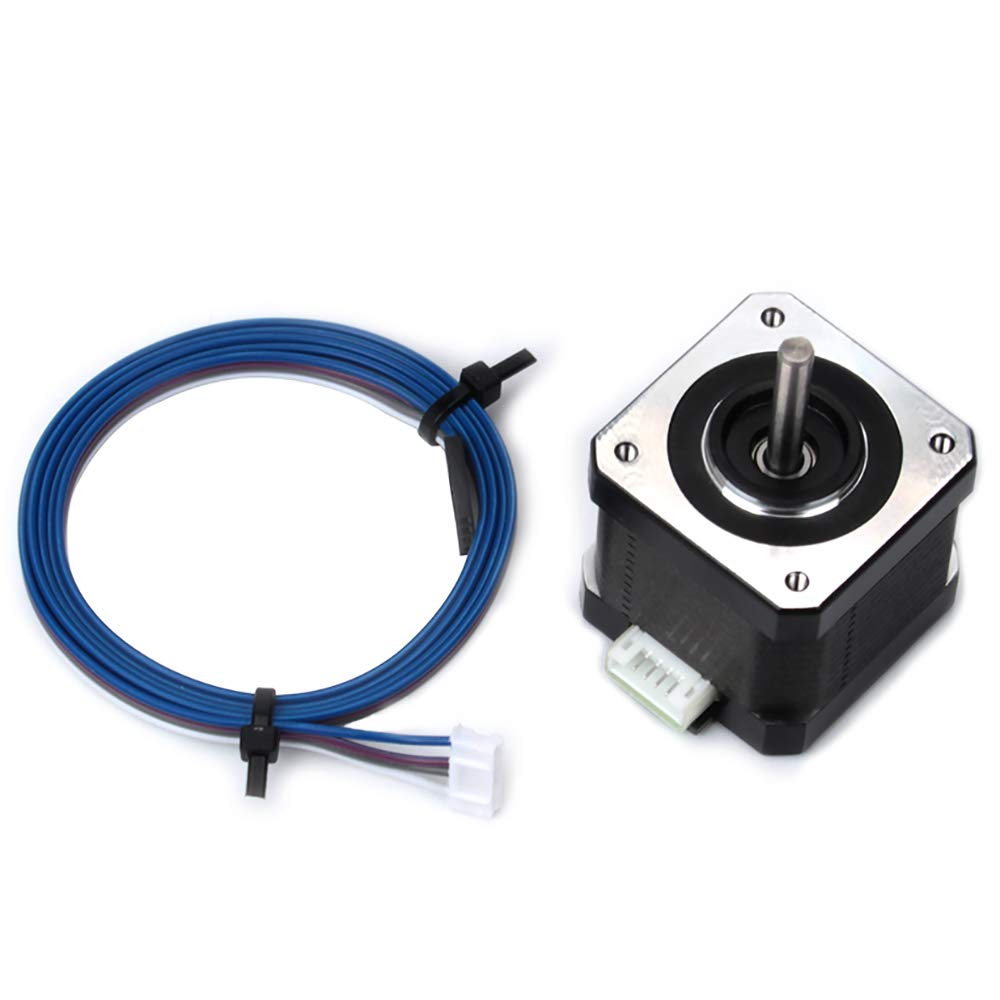

1 x 42-40 Nema 17 Stepper Motor
1 x 39.3 in Cable
FYSETC is a professional supplier of 3D Printers related accessories products. It has a professional R&D team and high quality after-sales service to ensure that you can enjoy your shopping.
Specifications:
Model Type: MS17HD4P410A-03
Condition: 100% brand new
Number of phase: 2
Step angle: 1.8 degree
Rated Voltage: 3.6 V DC
Rated Current: 1 A
Holding Torque: 0.48 Nm Typ.(Two phase on/rated current)
Phase Resistance: 3.6 ohm+-10%(20℃）
Phase Inductance: 8 mH+-20%(1kHz 1V rms)
Rotor Inertia: 38 g.cm2
Motor Weight: 0.23 kg
Insulation Class: B(130℃)
Connection:
Yellow(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
Package Included:
1 x 42-40 Nema 17 Stepper Motor
1 x 39.3 in Cable
