New 3D Printing Wireless Router HLK-RM04 WIFI Module HLKWIFI V1.2 Remote Control For TFT Touch Screen VS HLKWIFI V1.1

01


Overview

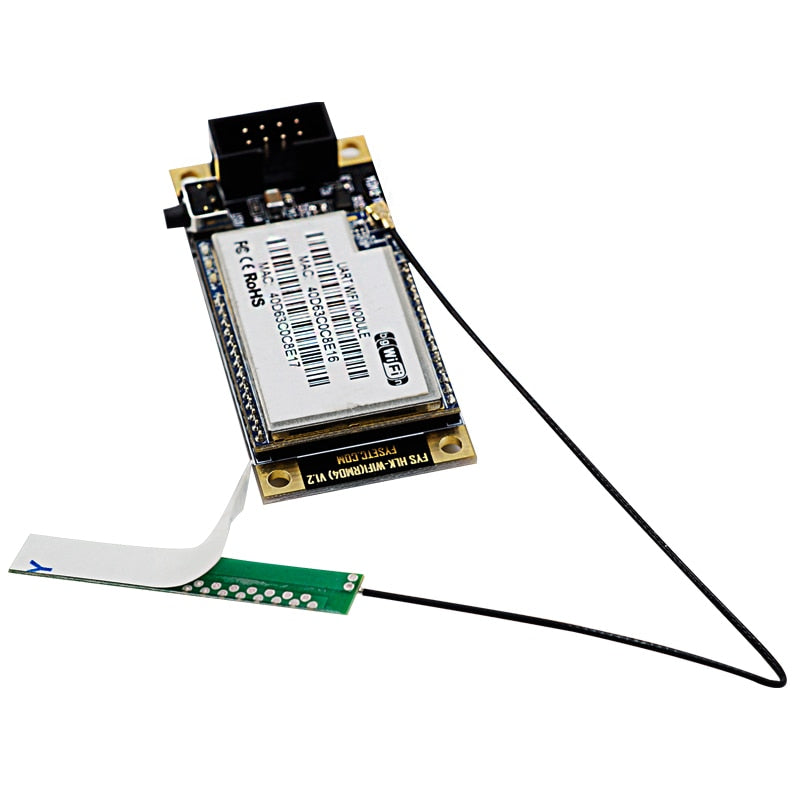

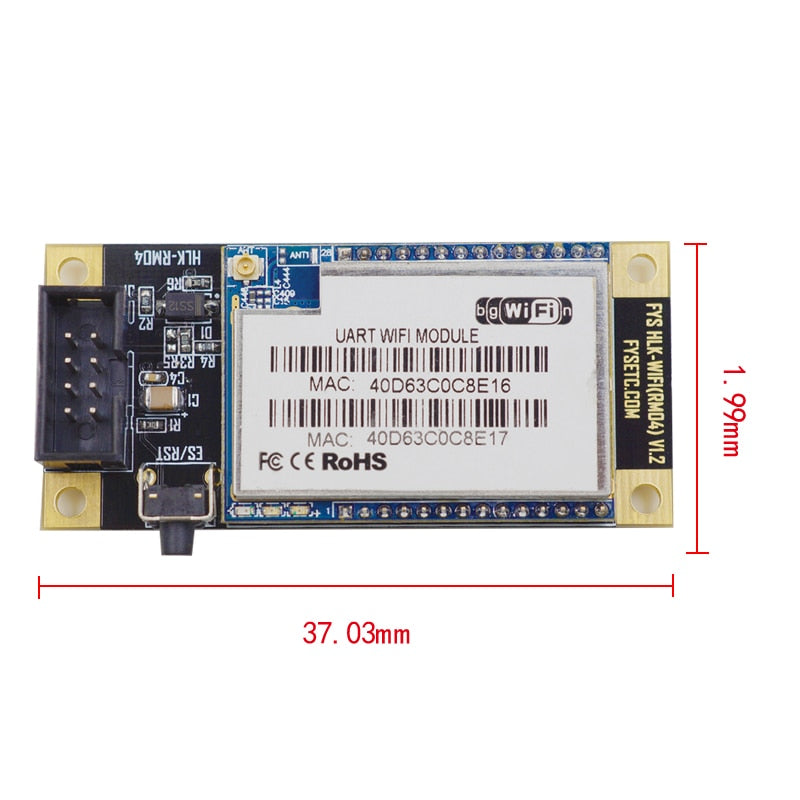

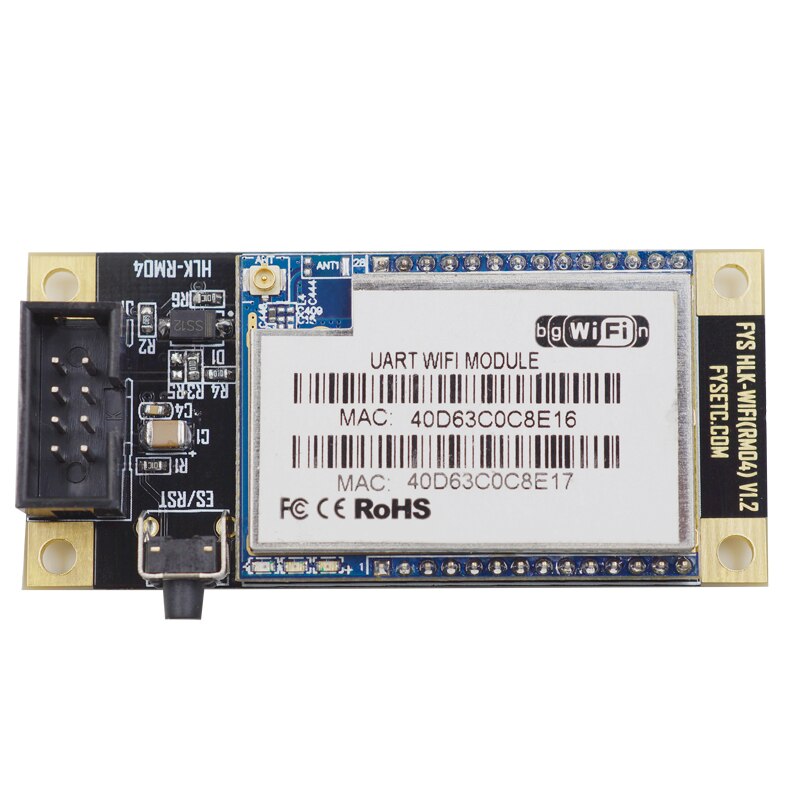

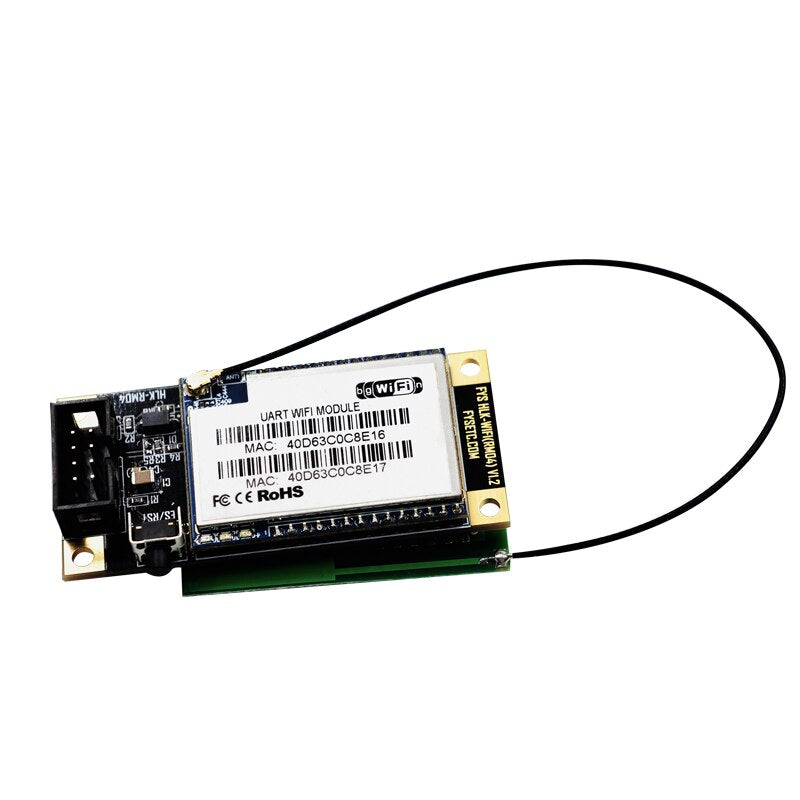

HLKWIFI is based on HLK-RM04 module, which is
suitable for open-source 3D printer . Also, HLKWIFI is used for Base
(updated version 1.2), Gen, SBase,  TFT touch screen etc

Features
1. Based on strong and stable HLK-RM04 module.
2. Using on motherboard directly .
3. Work with TFT touch screen.
Notice: Due to undercurrent, HLKWIFI can not work with Ramps1.4.

Connection
1.Connect to Aux-1 of TFT28.
2. Connect to Aux-1 on BASE, SBASE, GEN.
 BASE only supports V1.2  updated version.

Appendix 1

Usage on Motherboard
1.Connect WIFI module to AUX-1

2.Search for WIFI hotspot and connect.
1).Search hotspot HI-LINK-XXXX, and connect. Password: 12345678;
2).If you can not find the hotspot , press on button of module for 10 seconds,
then restore factory settings.
3).Attention: under default , the baud rate of HLKWIFI is 115200, which
must be as the same as firmware .

3. Configuration on HLKWIFI

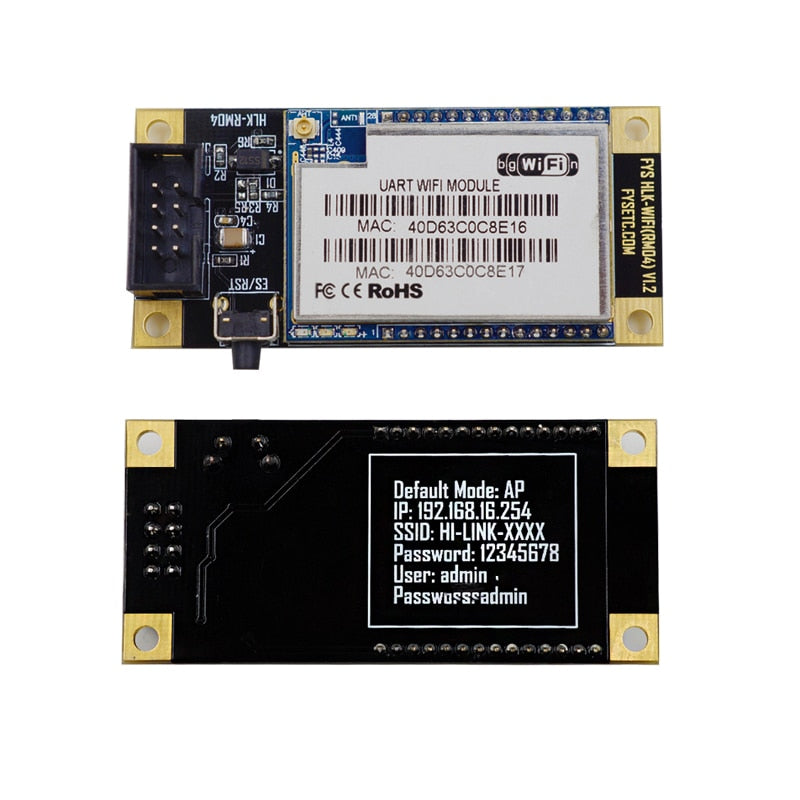

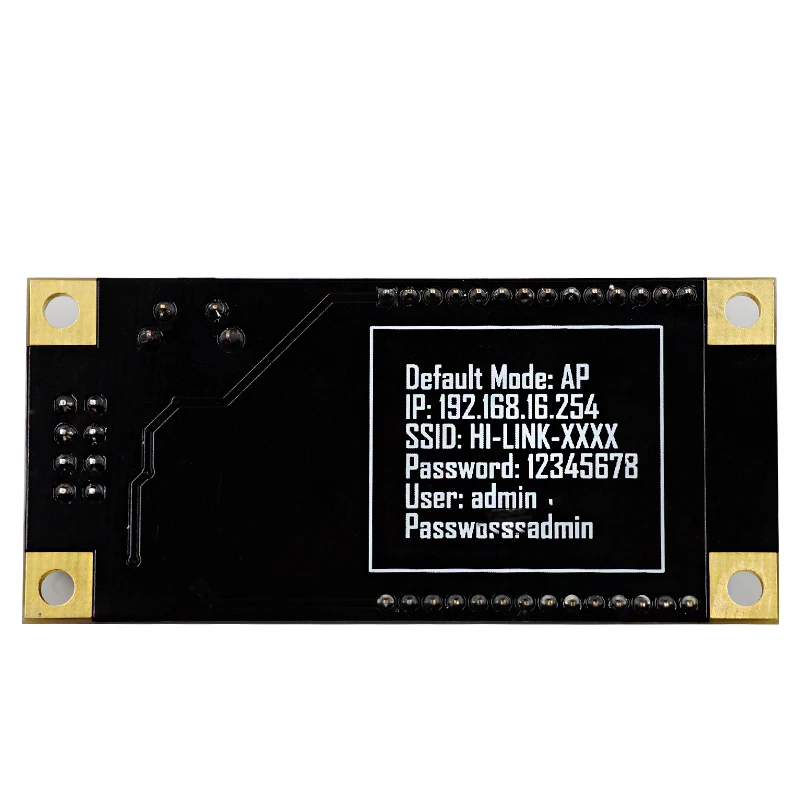

1).After enter HI-LINK-XXXX, connect to IP: //192.168.16.254;
2).Log in :  accounts: admin;  password : admin.
3).Proceed network configuration and modify the Client you need.
4).Any other help, please refer to HLK-RM04 user manual 1.31.pdf.

Package listing:
1 x HLKWIFI V1.2
1 X Cable
