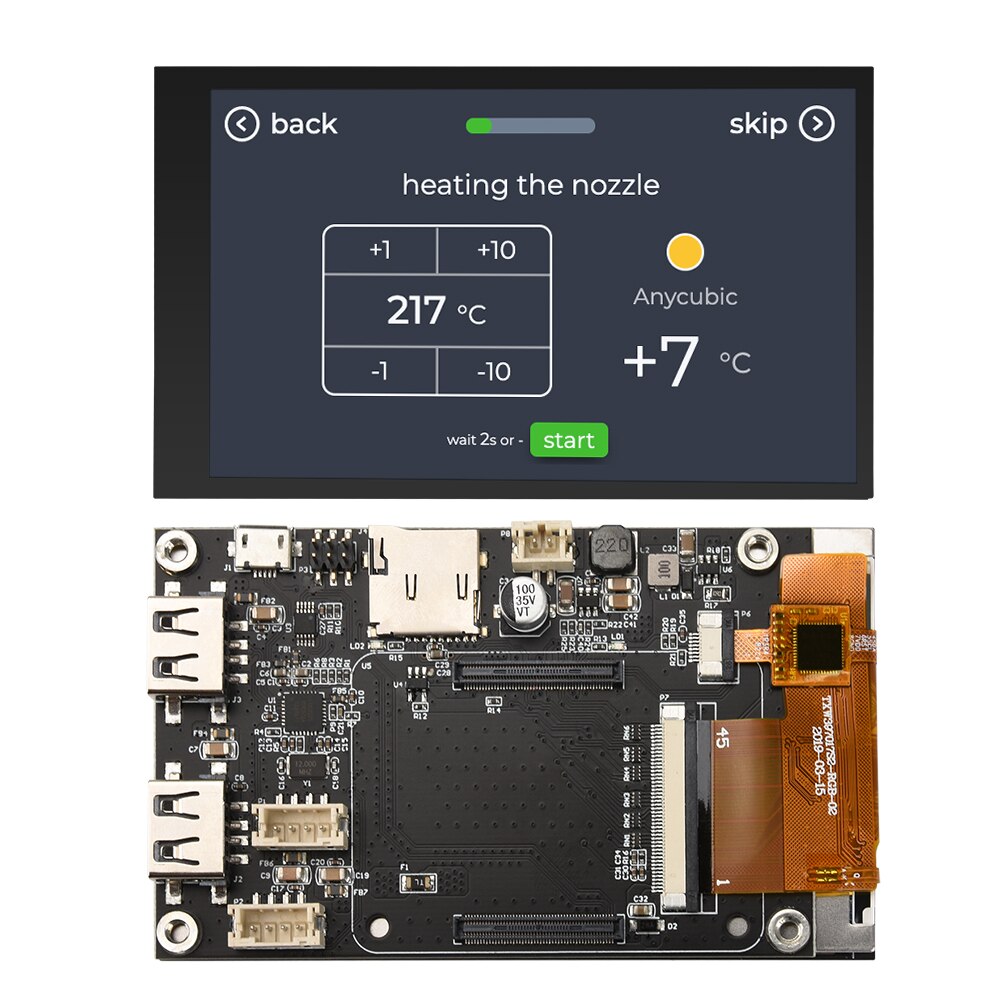

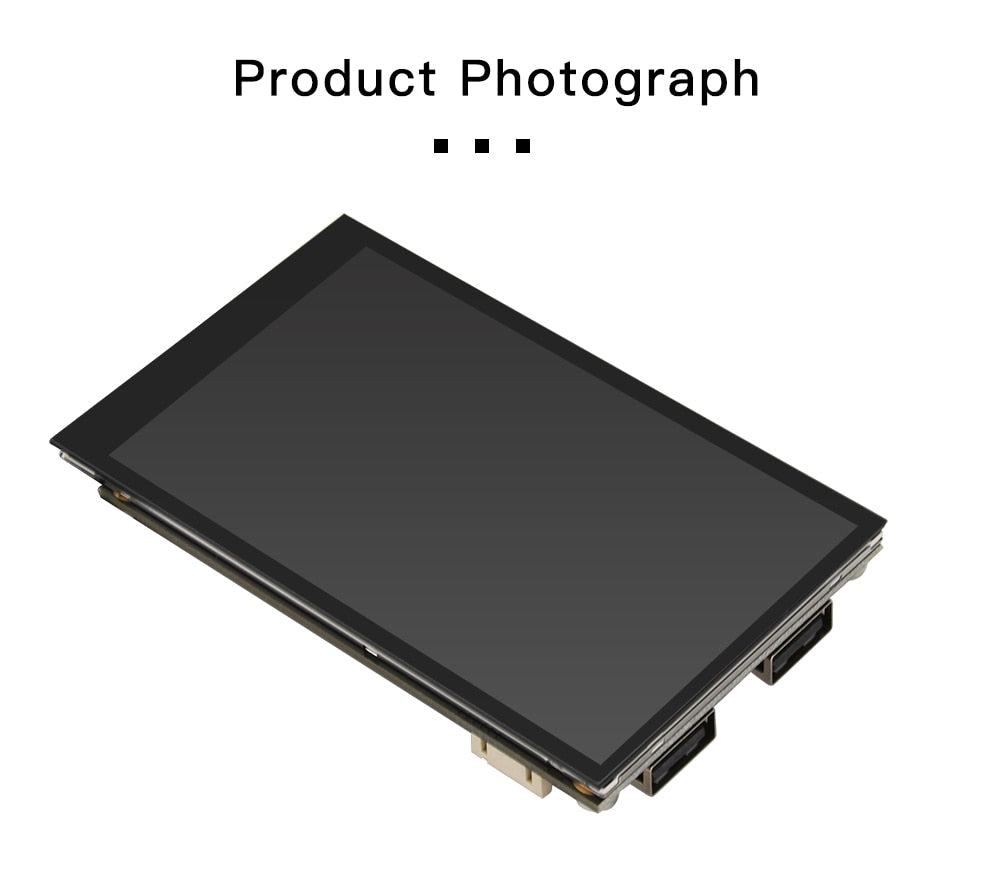

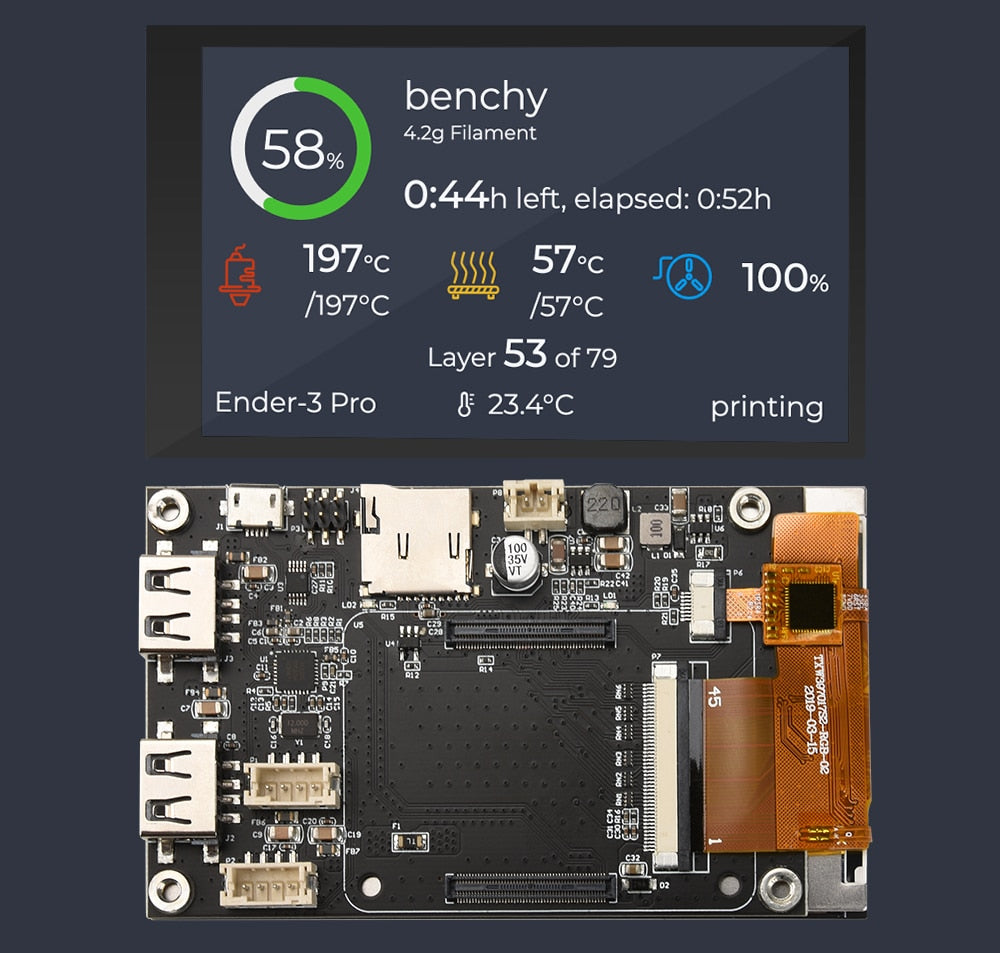

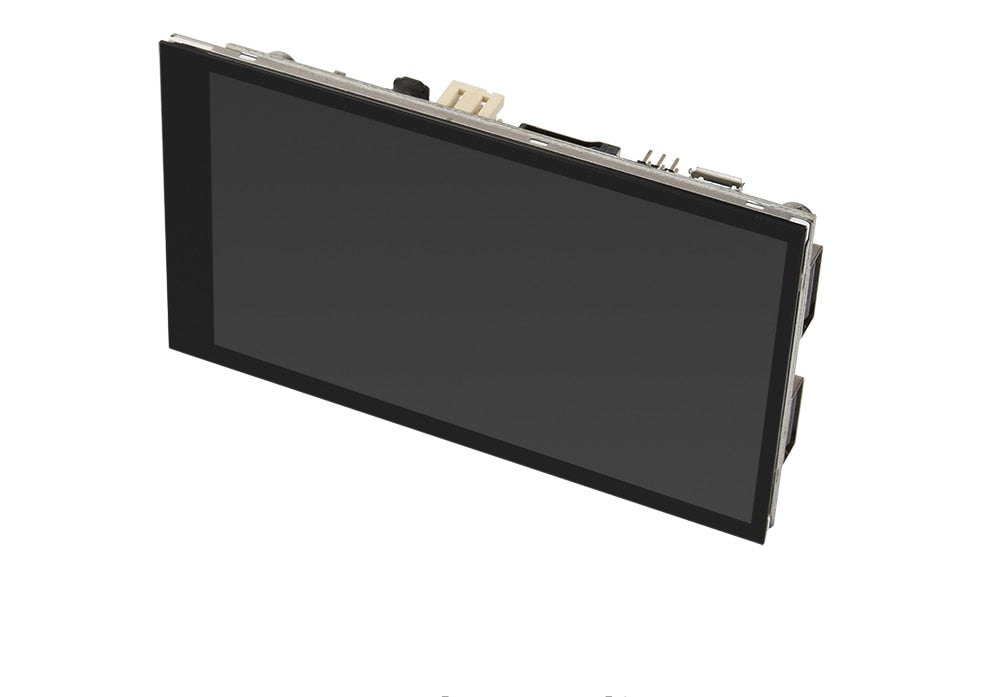

Raspberry Pi CM4 HMI Display Module Small and High Resolution HIM DPI Interface Capacitive Touch Screen Module

About the Product:

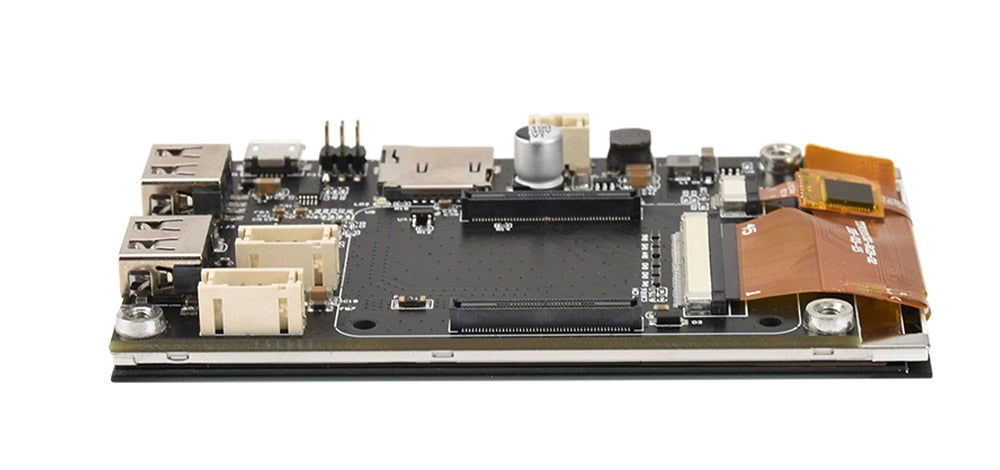

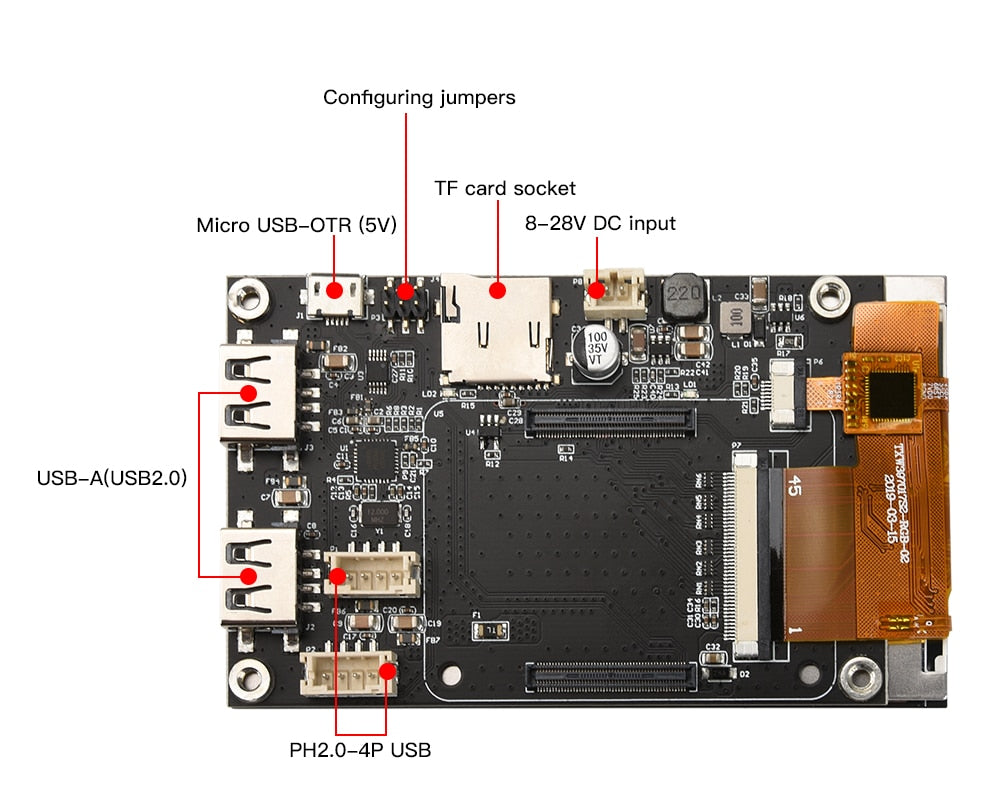

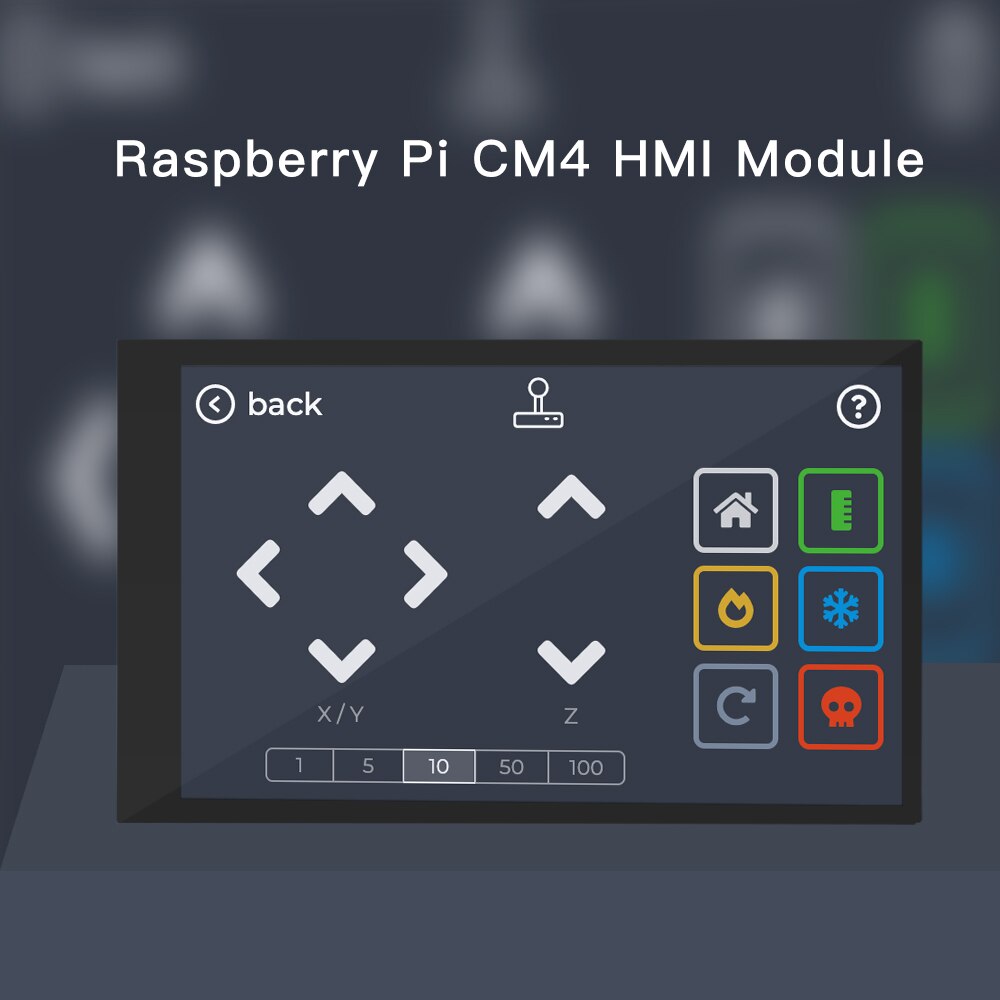

This is a solution that integrates the capacitive touch screen and the Raspberry Pi computing module. In the only 56x97 size, it integrates 4 flexible USBs (2 on the side and 2 on the board), 5V@3A The DSI, CSI, HDMI and other interfaces that are not frequently used are abandoned by the DC power supply circuit, which is especially suitable for HMI applications on devices with compact space, such as 3D printers, small CNCs, etc.

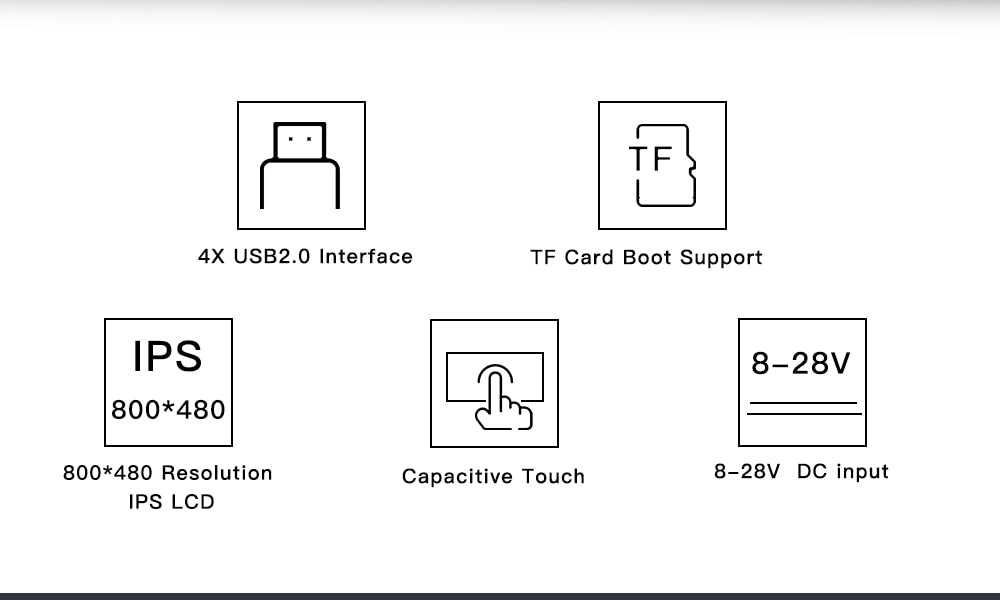

Feature:

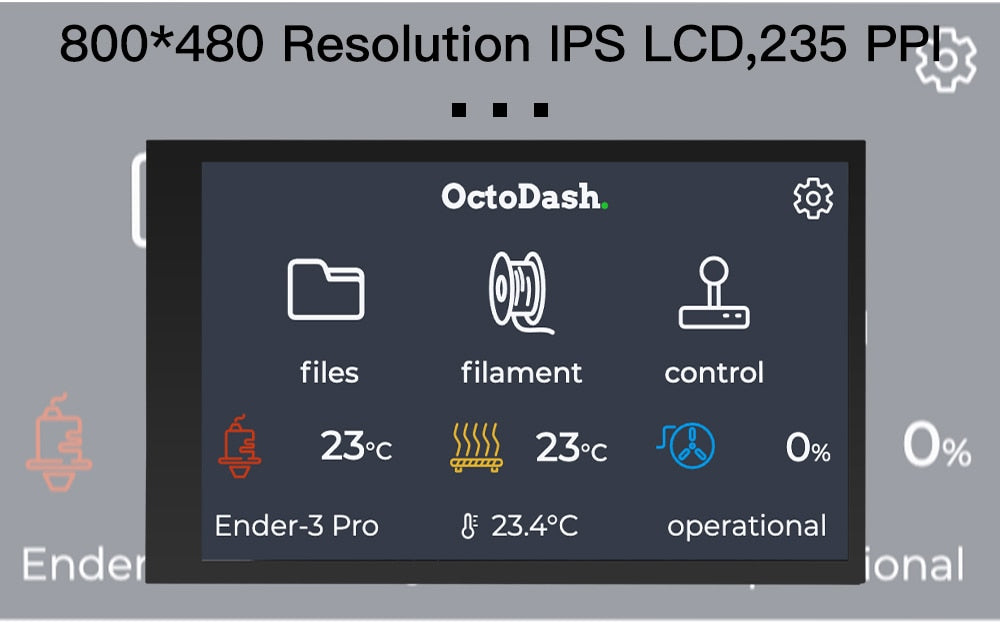

1.800*480 Resolution IPS LCD,235 PPI

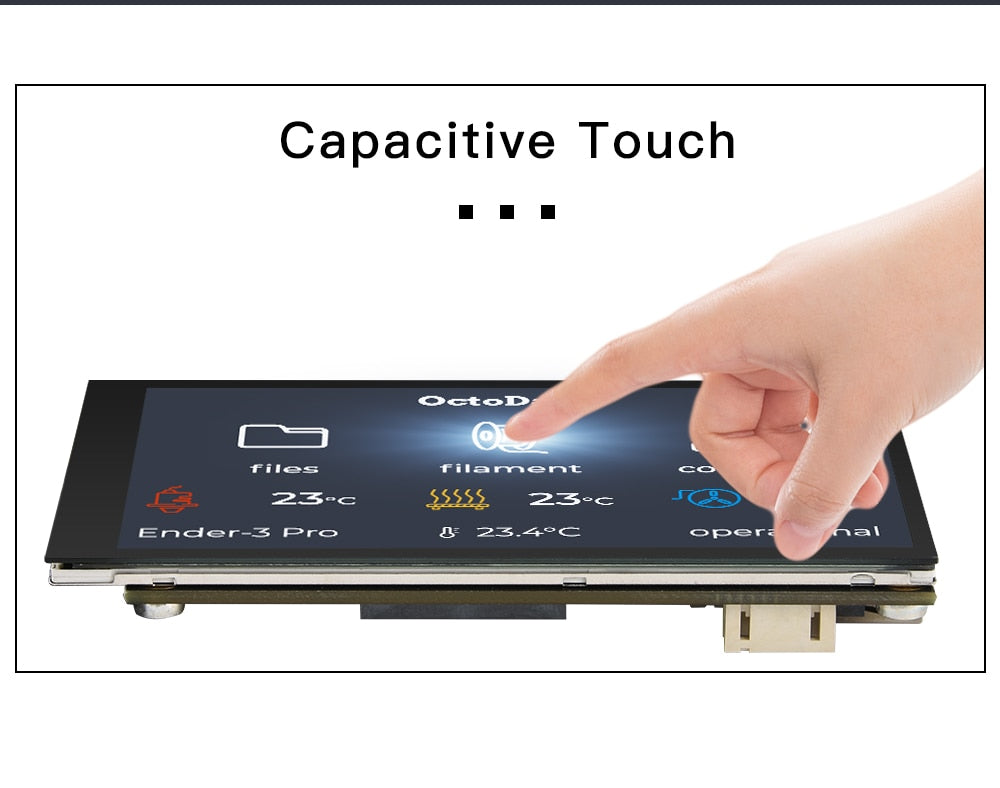

2.Capacitive Touch
3.8-28V DC input
4.4X USB2.0 Interface
5.TF Card Boot Support
6.Onboard Micro-USB,OS Write Directly

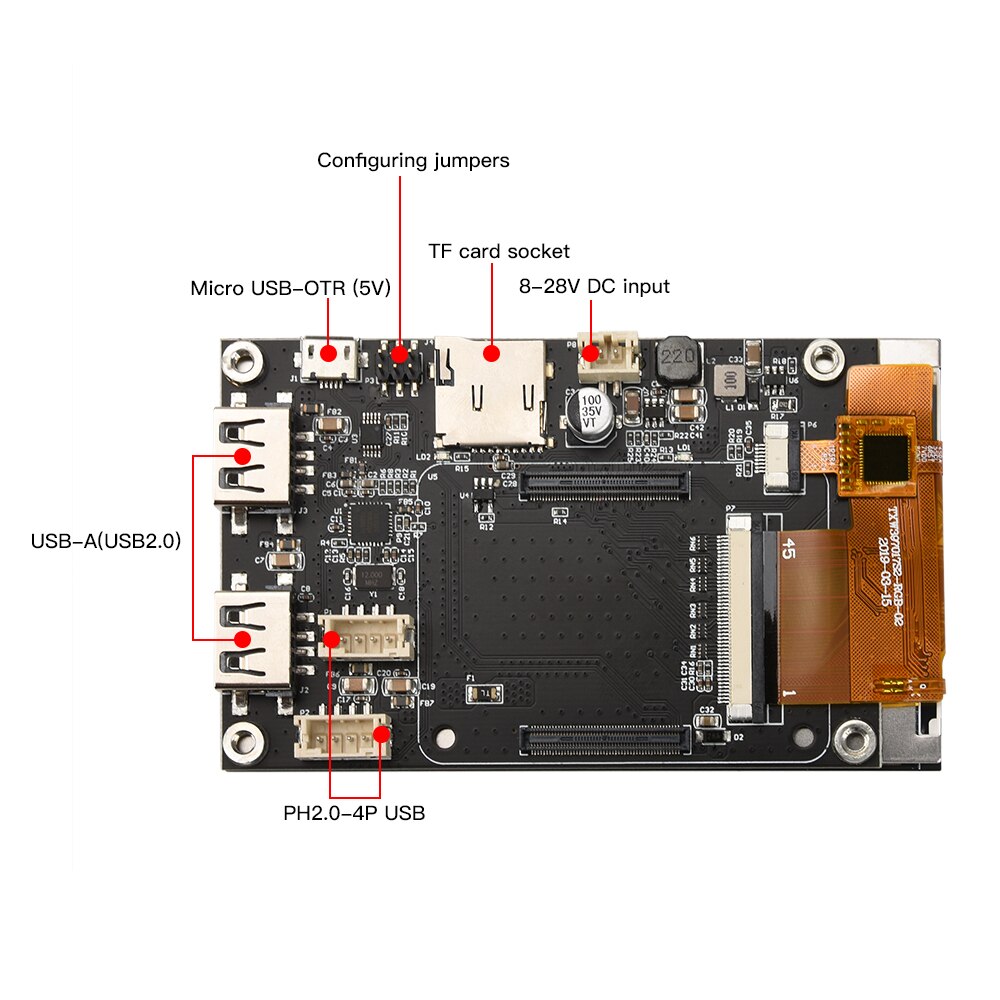

Specifications:

Display:800*480 IPS Screen via DPI interface (18bit)
Touch:5-Point Multi-point Capacitive Touch
Network:CM4 Onbard WIFi or use a USB WiFi adapter on USB2.0.
USB:2x USB-A Socket
2x PH2.0-4P Connector
Storage:Micro-SD Card Slot (load system Image for non-eMMC CM4 version)
Power:8V-28V DC Input
Temperature Range:0°C to +85°C
Dimensions:56x97mm
Weight:43g

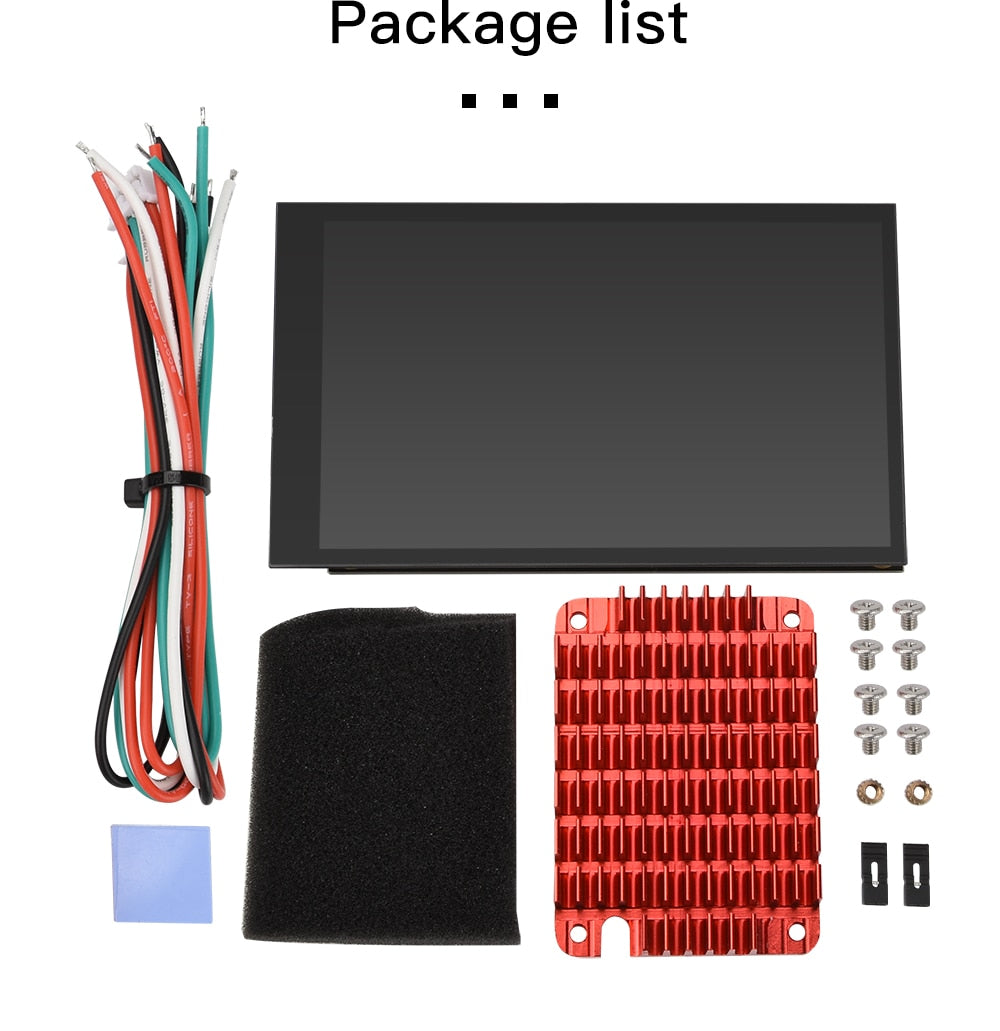

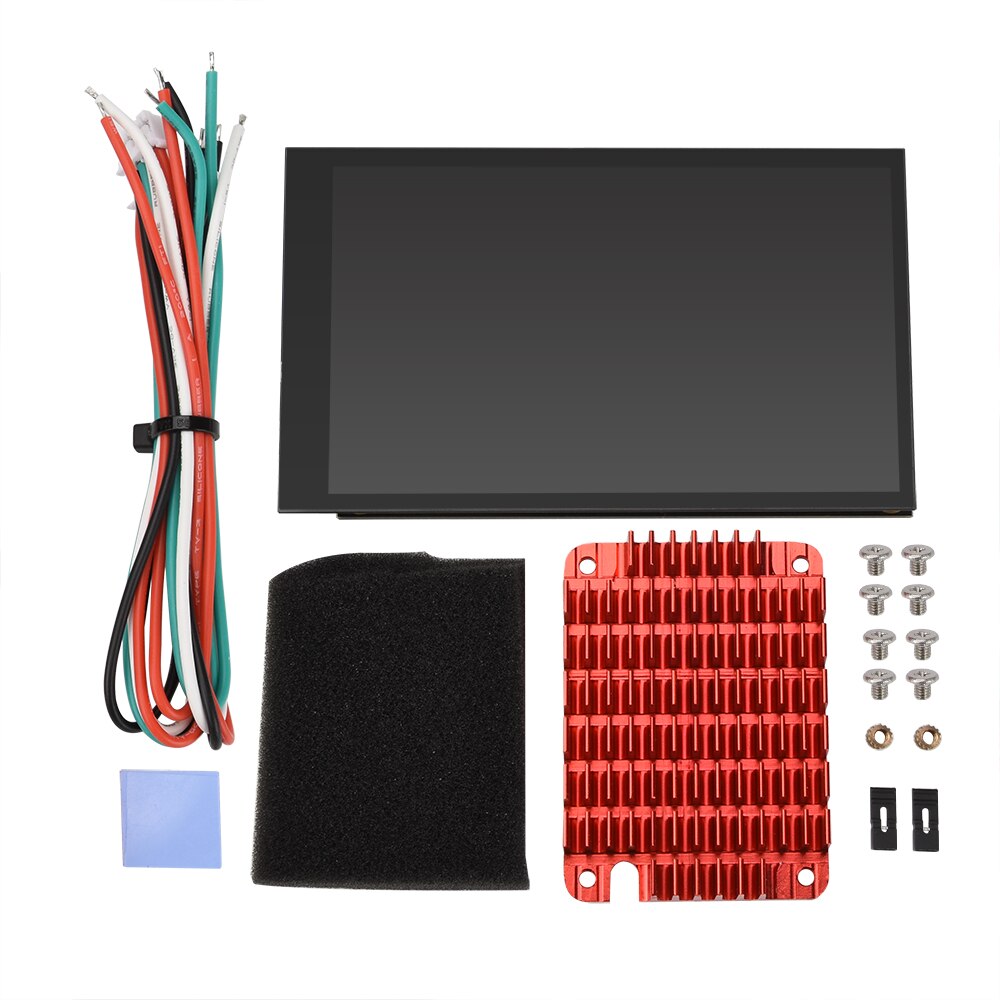

Include

CM4 HMI Module x1
CM4 Heatsink x1
2P PH2.0 Wire x1
4P PH2.0 Wire x1
