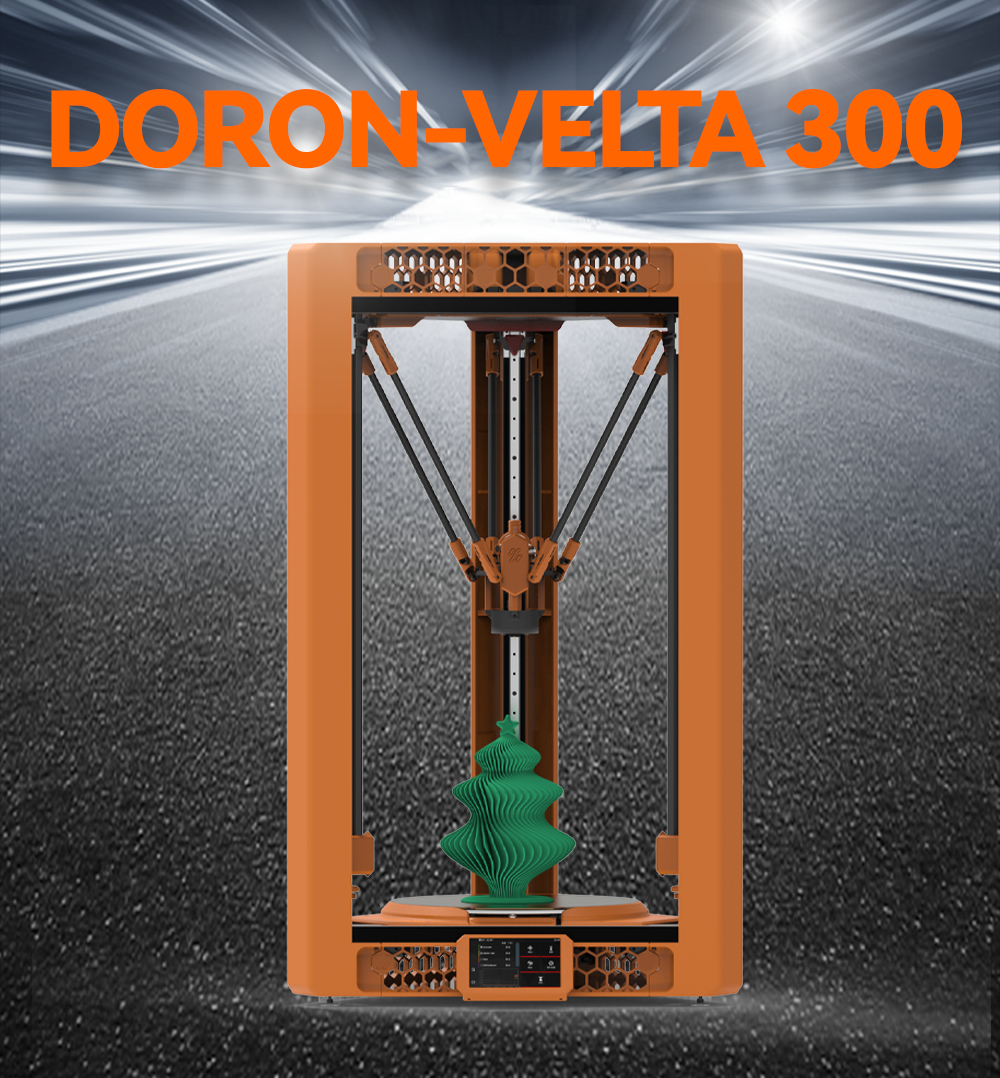

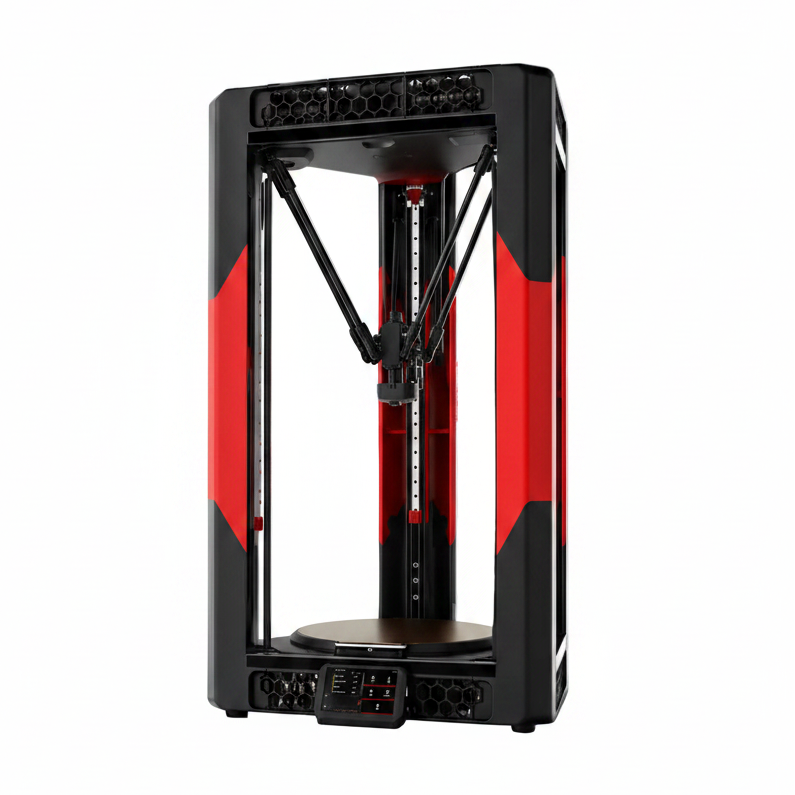

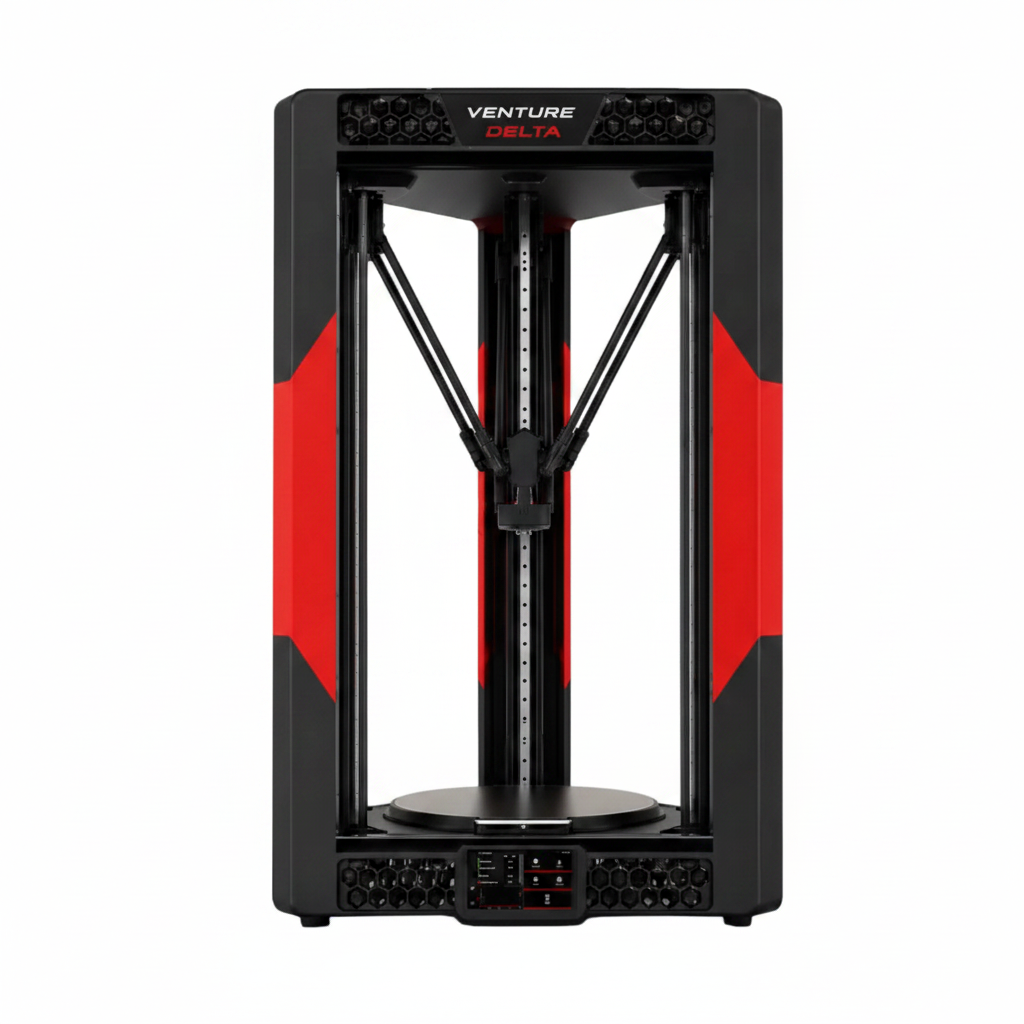

Venture D300

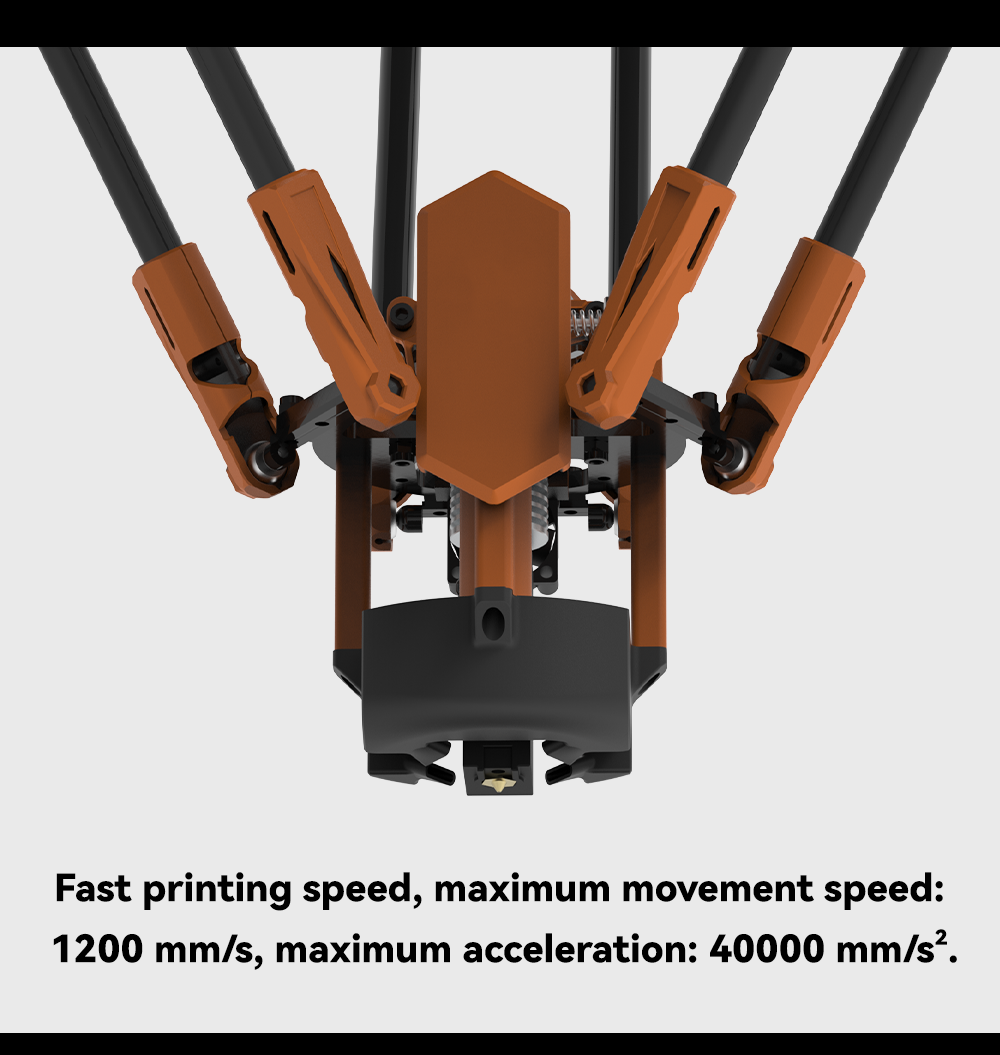

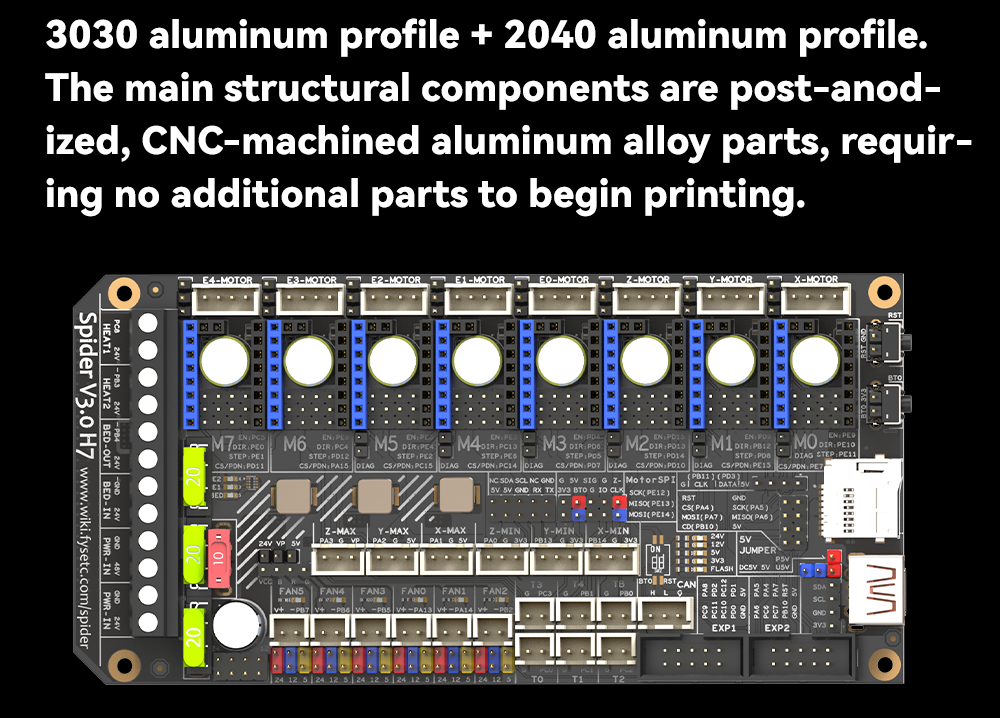

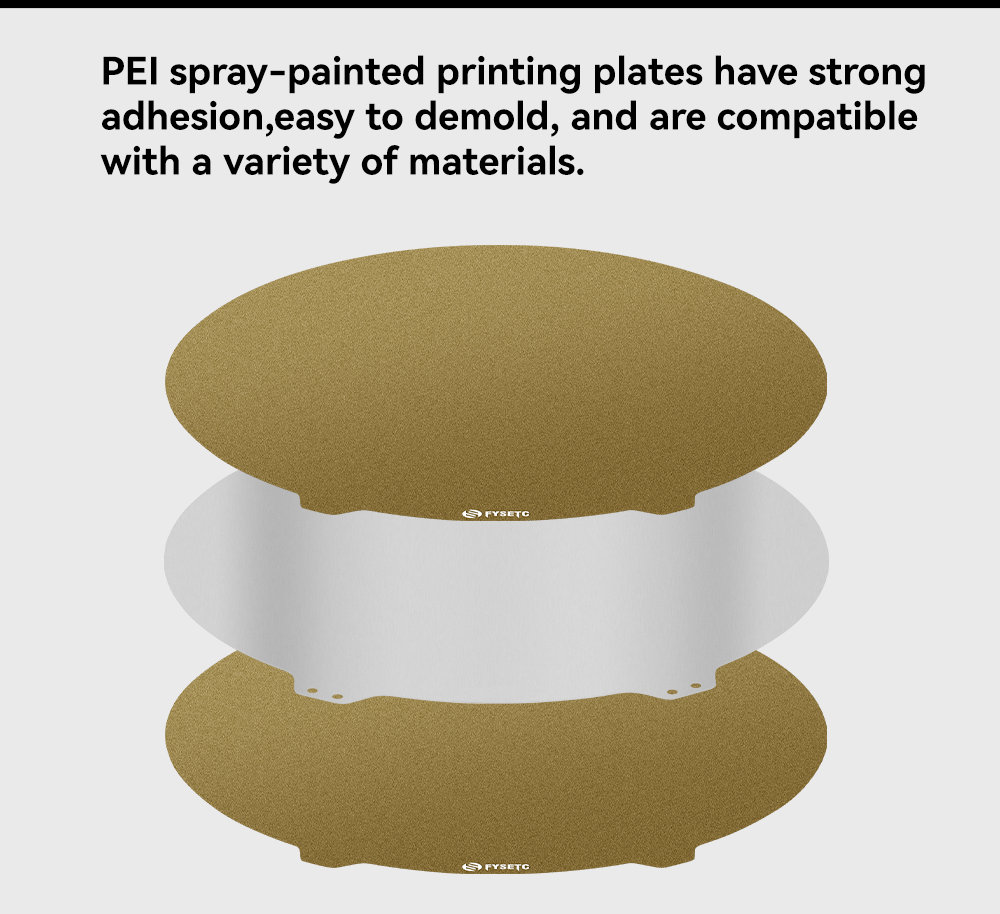

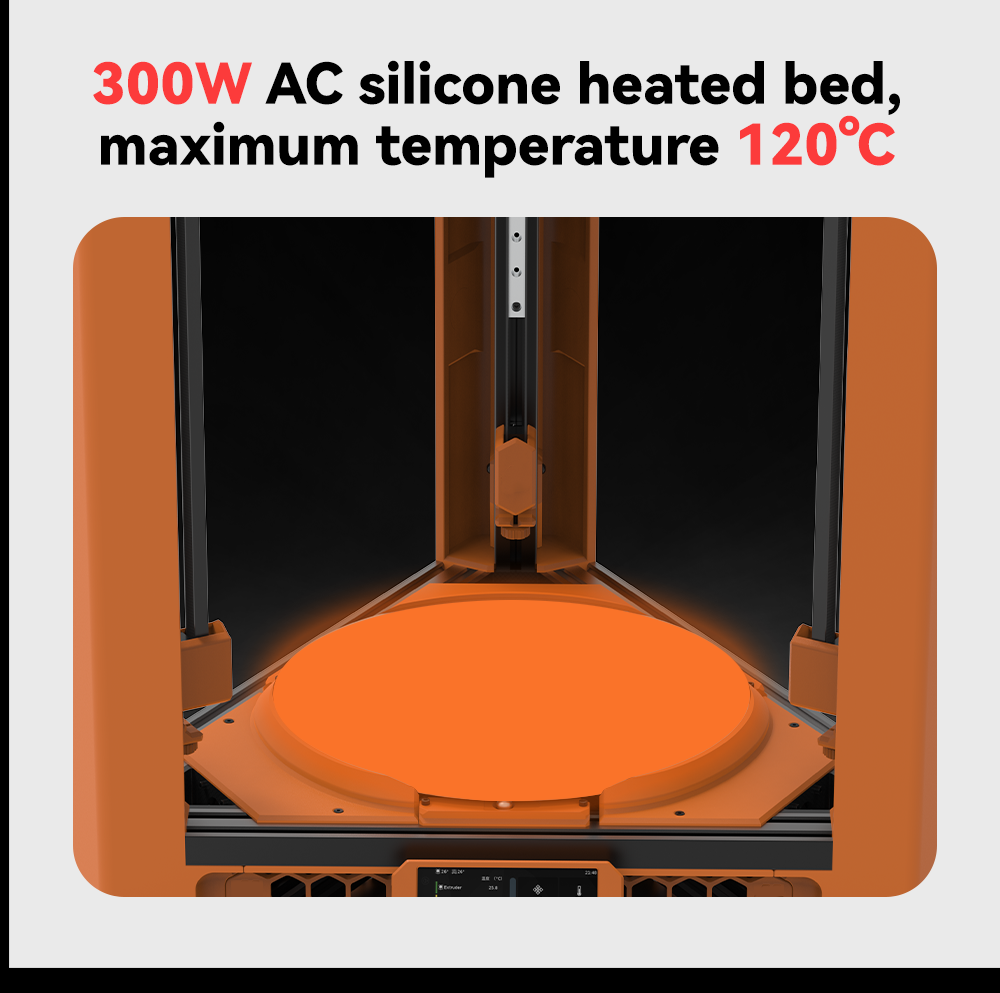

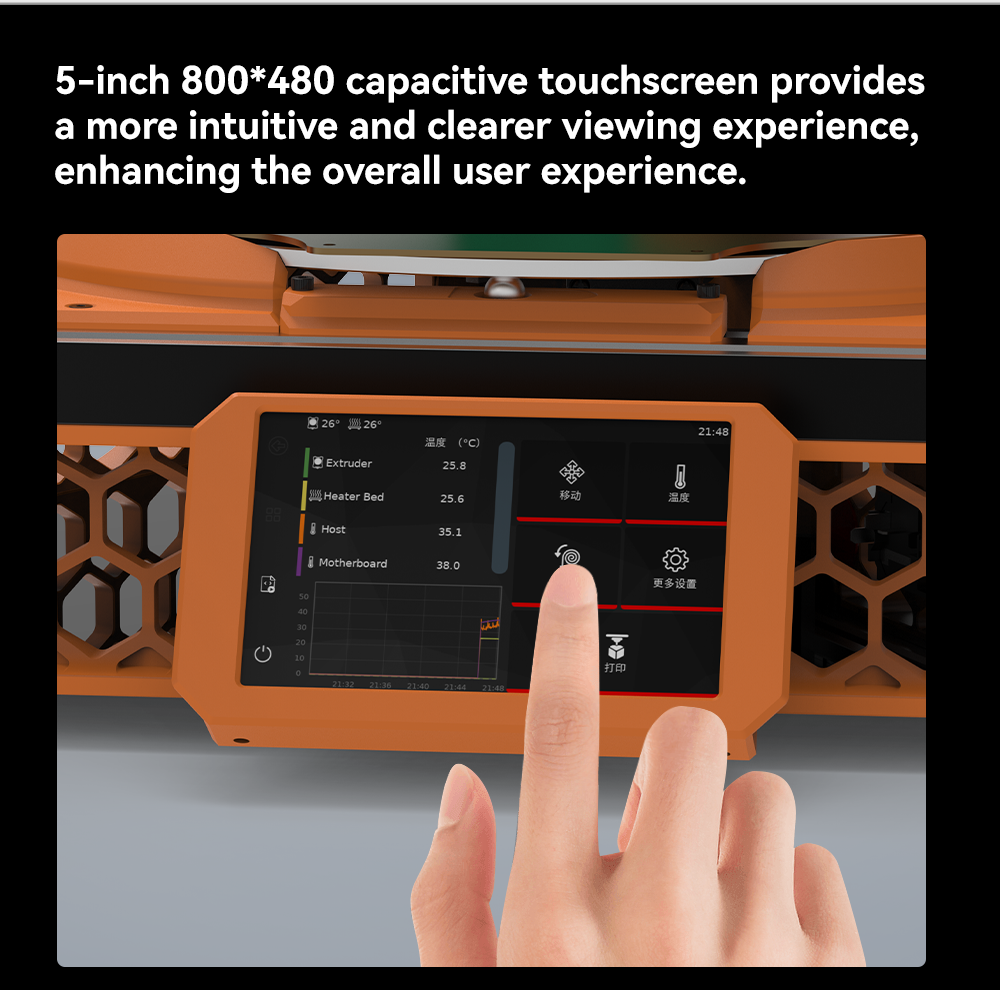

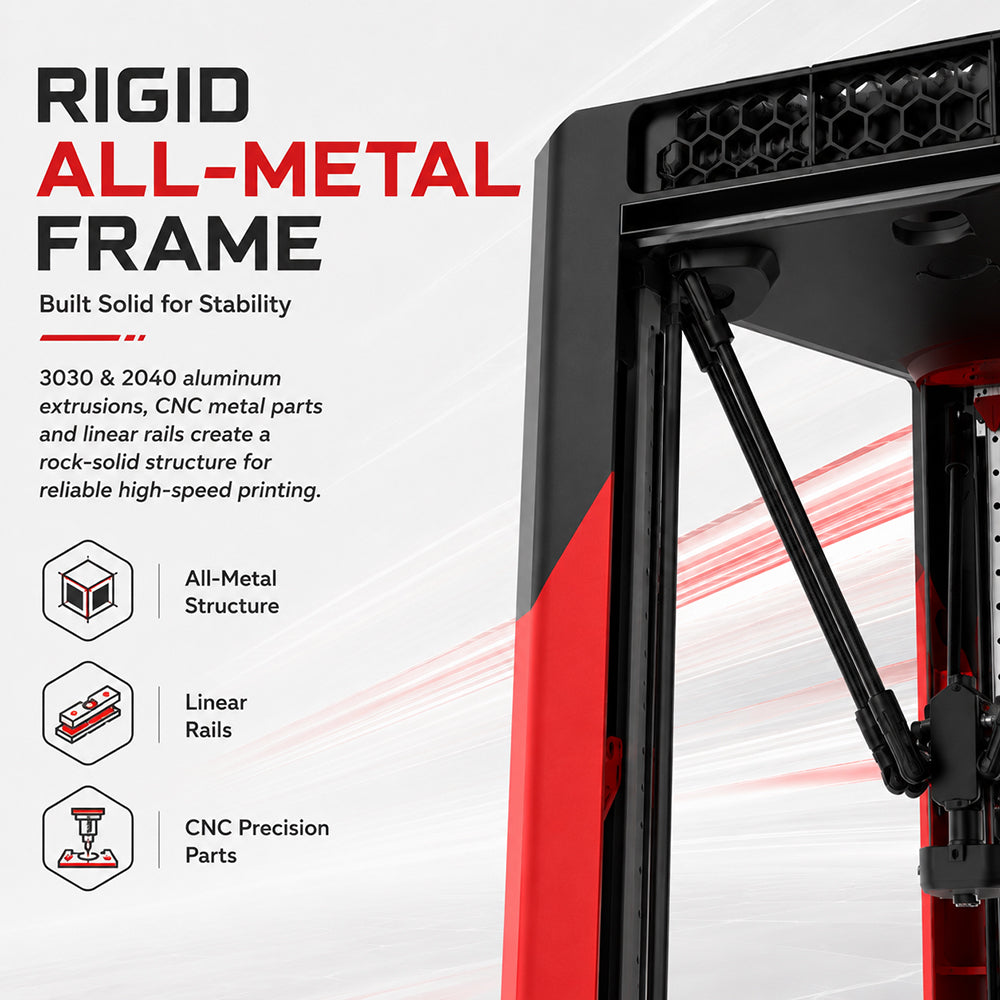

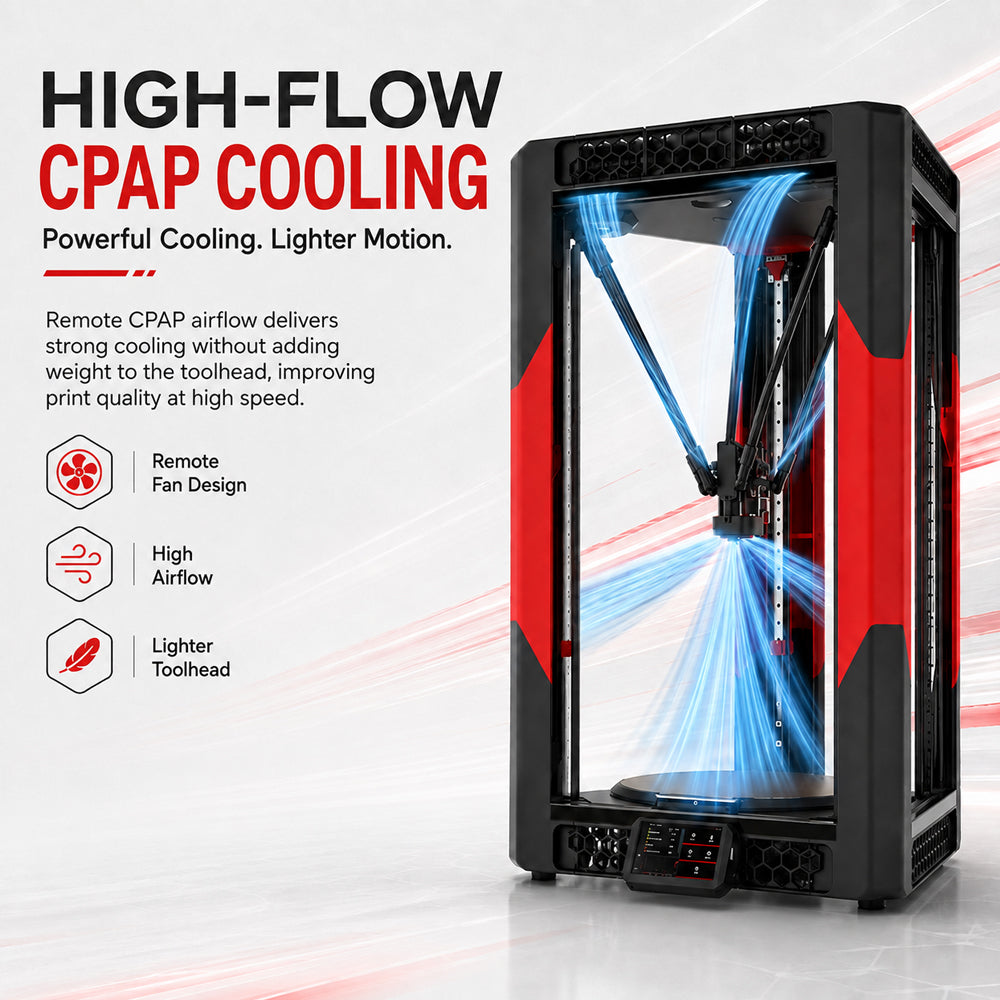

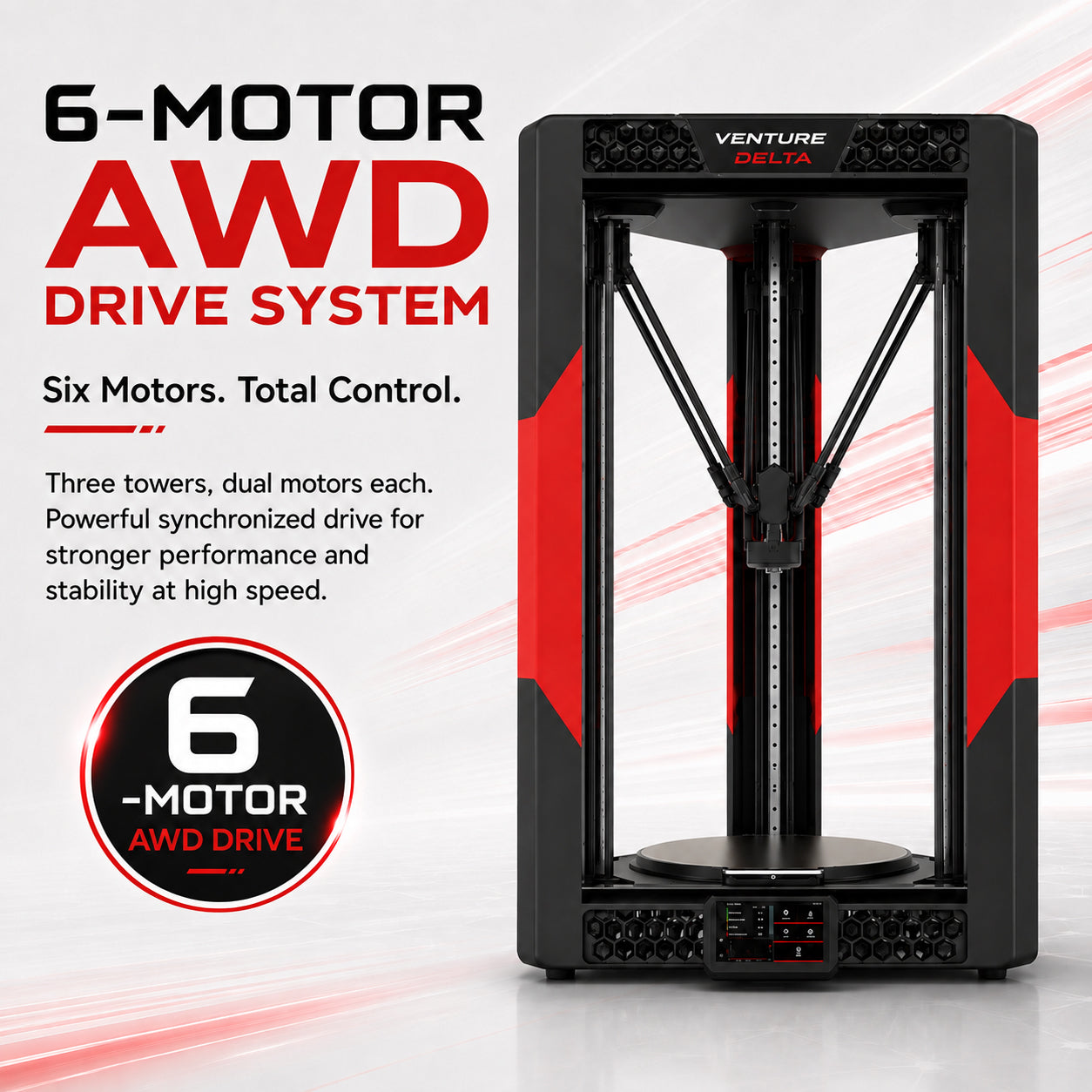

::: coupon 有效期：7.11th-7.20th 适用条件： 金额：100$ 券码：FYSDORON300 ::: ## Build Parameters * Build Volume: 300mm diameter x 300mm height * 80W heating rod, maximum 300℃ * 300W AC silicone heated bed, maximum 120℃ * 6mm aluminum alloy platform + PEI coated print plate * Maximum movement speed: 1200mm/s, maximum acceleration 40000mm/s² ## Electronics * Host computer: Quad-core A53, 512MB + 16GB, AP6212-WIFI * 5-inch 800*480 capacitive touchscreen * Photoelectric limit switches for more precise repeatable positioning * Remote air cooling, 24V 70W CPAP stepless speed control brushless fan, up to 23000 RPM + PA corrugated pipe * Spider V3.0 H7 motherboard, TMC2209 drivers * 24V 200W Jinshunyang power supply ## Frame * 3030 aluminum profile + 2040 aluminum profile, anodized * CNC parts + carbon fiber tubes (push rods) * Main structural components are CNC machined aluminum alloy components, no additional parts needed to start printing * Simplified assembly, only 6-7 types of screws ## Transmission * Dual motors per axis, 6-motor drive * MGN12H guide rails * 9mm neutral GT2 timing belt ## After-sales and Support Dedicated Discord community, dedicated engineer technical support, continuous updates and optimization
