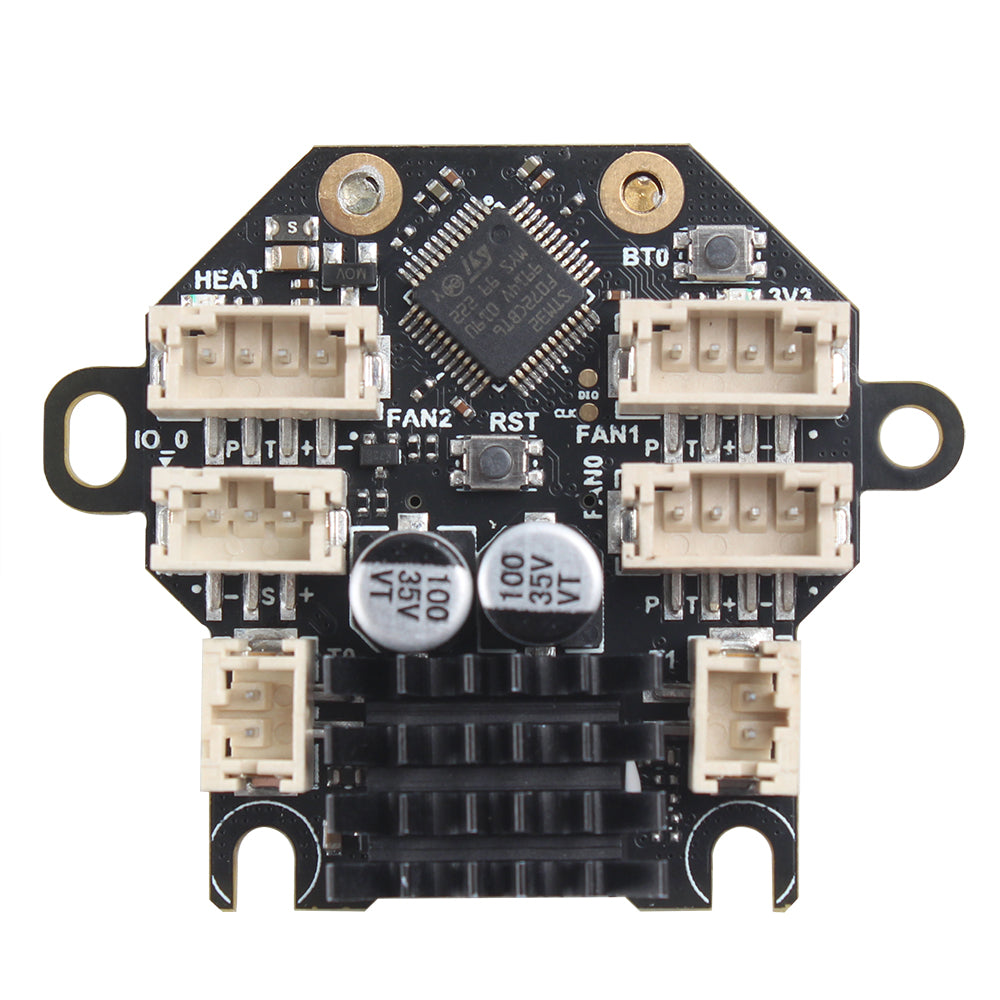

FYSETC M36 Hub Board use with 36 circular stepper motors (Nema14) Used on mini Stealthburner or other print heads using 36 motors For Catalyst/BullAntMotherboard

!!! note The M36 hub board is specially designed for use with 36 circular stepper motors (Nema14) and can be used on mini Stealthburner or other print heads using 36 motors. This board can be used with a variety of motherboards, especially our catalyst and BullAnt. With special connection cables, it can also be adapted to any other system using klipper. !!! **M36 is divided into two versions, mainly because of the difference in motor driver chips. The normal version is TMC2209, used with Catalyst motherboard; the Lite version is GC6609, used with BullAnt motherboard.** **1.1 Feature** - Based on STM32F072 - USB interface or CAN（need addon board） - Onboard TMC2209 / GC6609 (Lite Version) - 3 x 4Pin(2pin/3pin compatible) controlled Fans (default VIN power supply, 5V optional) - 1x signal input / output interface (default 5V power supply, VIN optional , with level shift) - 2x signal input and output interface (3.3V power supply, with 10K pull-up resistor,without level shift) - 2X 5V single wire RGB interface (1A MAX) - 1x 3A MAX PWM output for heating rod - 2x ADC interface for heating temperature or other needs - 1x onboard thermistor for board temperature or champer temperature monitor - Comes with 250mm 4-core cable - 24V/7A max Power Supply - Comes with terminal housing and wire crimping tabs - Onboard ADXL345
