Pre-Sale FYSETC Spider king motherboard Big 5160 max 60V 10-axis Industrial-grade Motherboard Support UART SPI for Voron    Please Note :this is the presale product , the shipping time 30days!!!!!and if...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: Out Of Stock

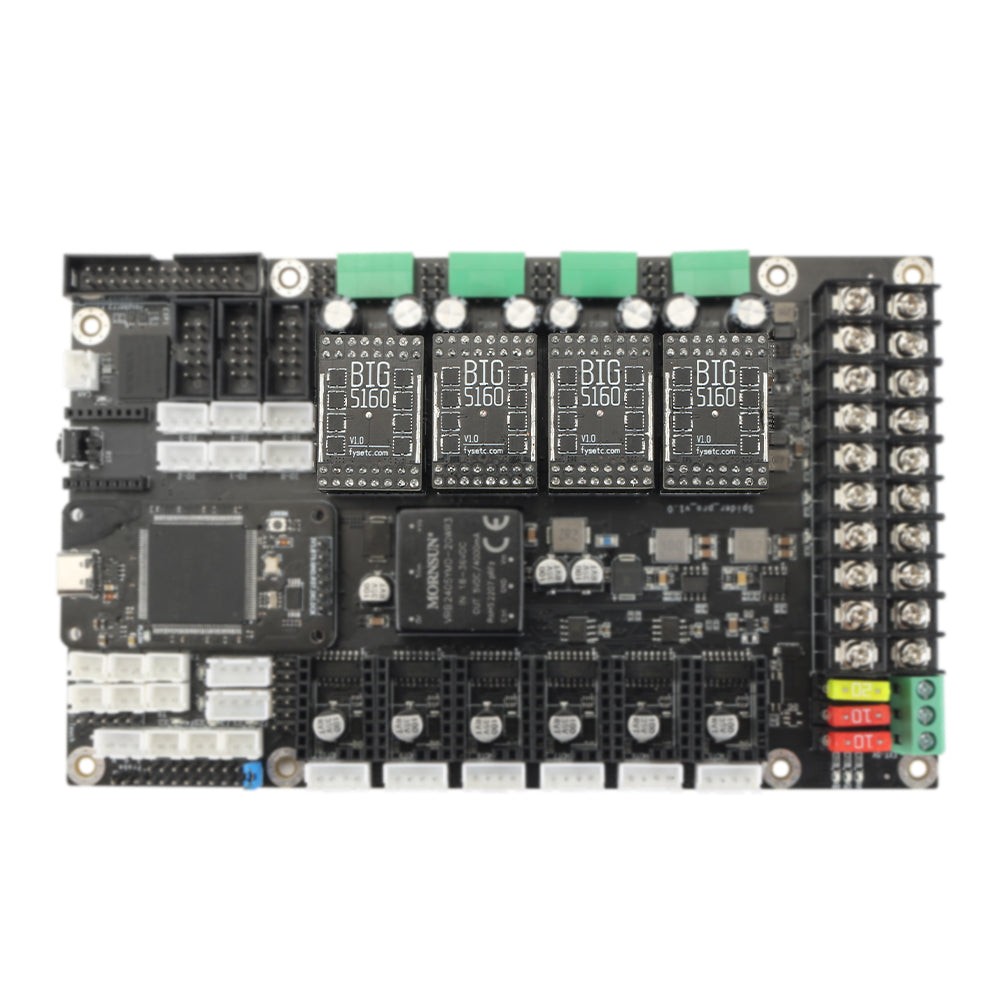

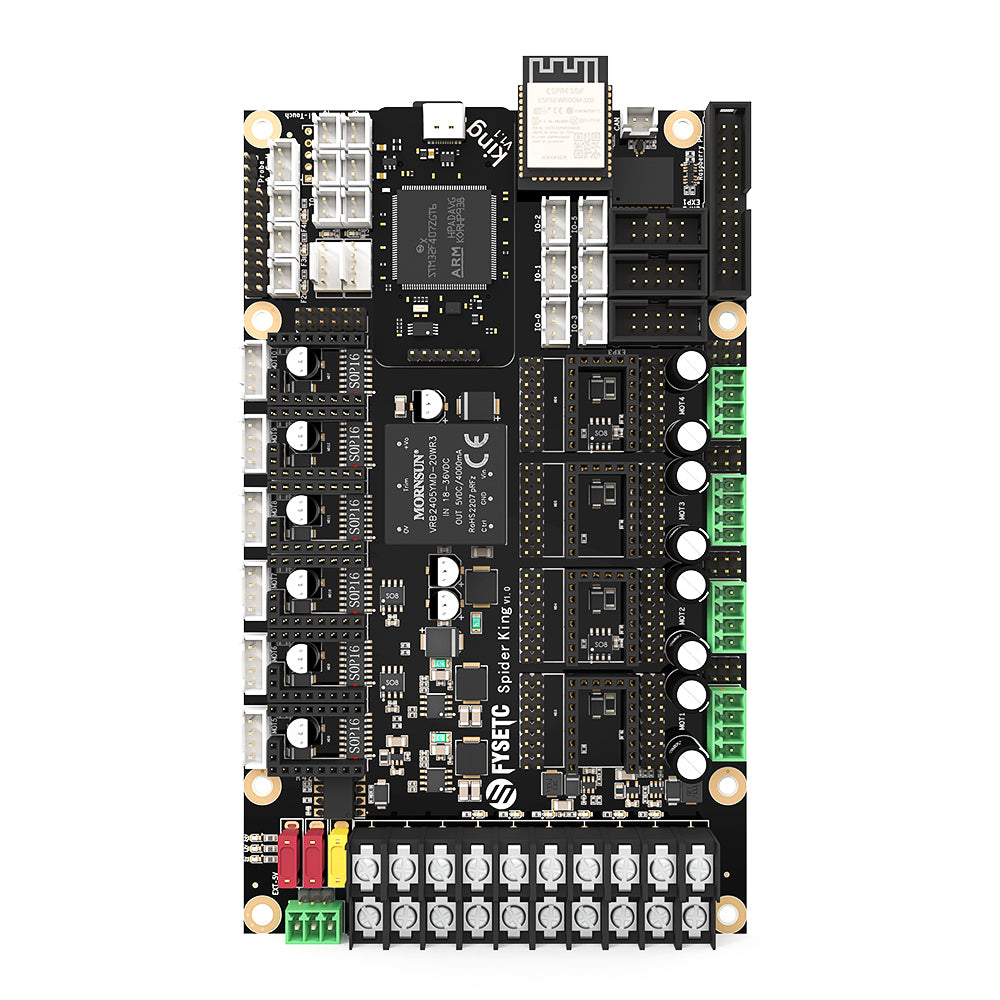

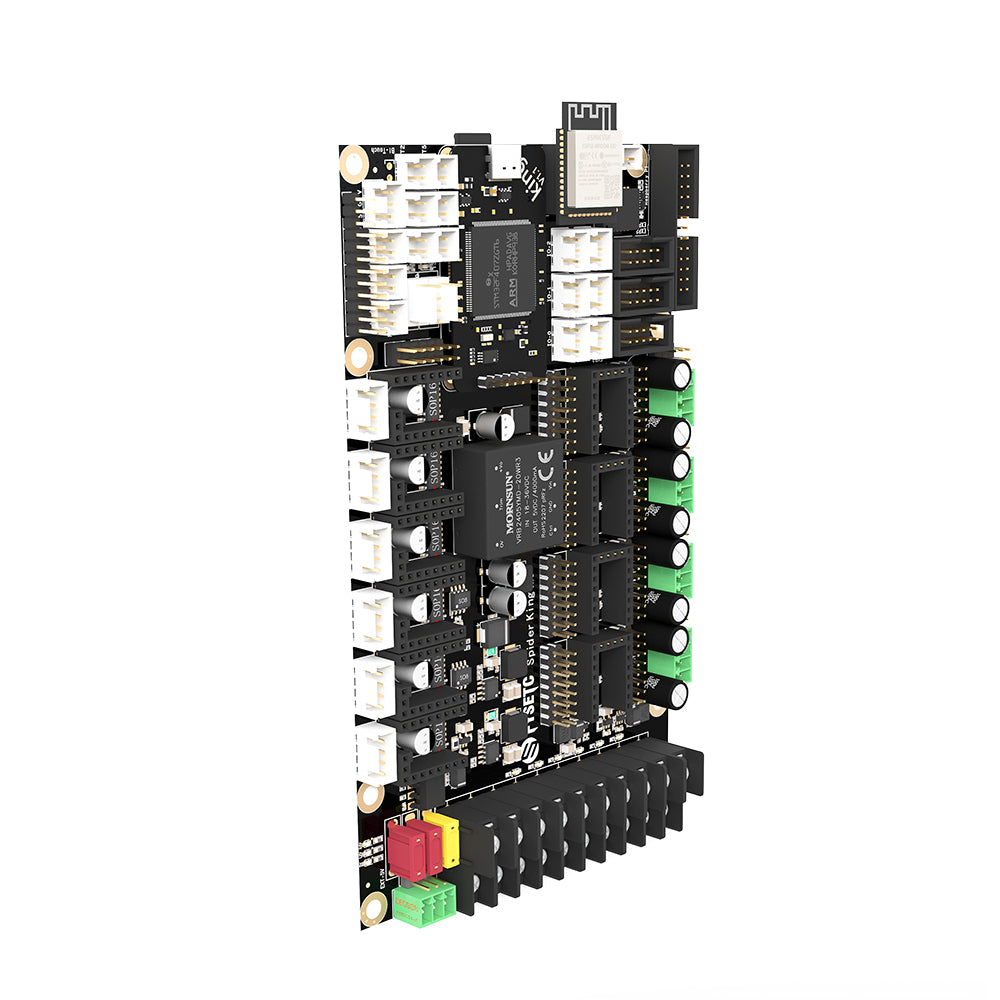

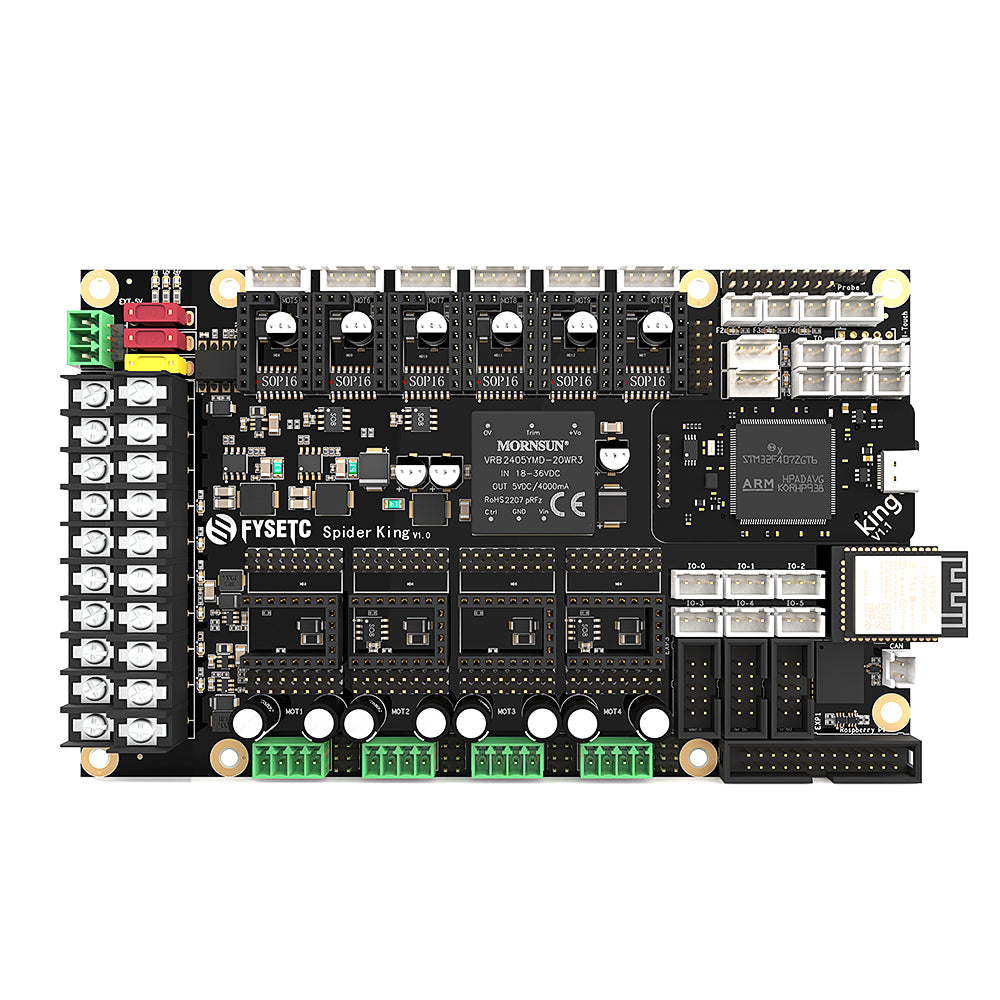

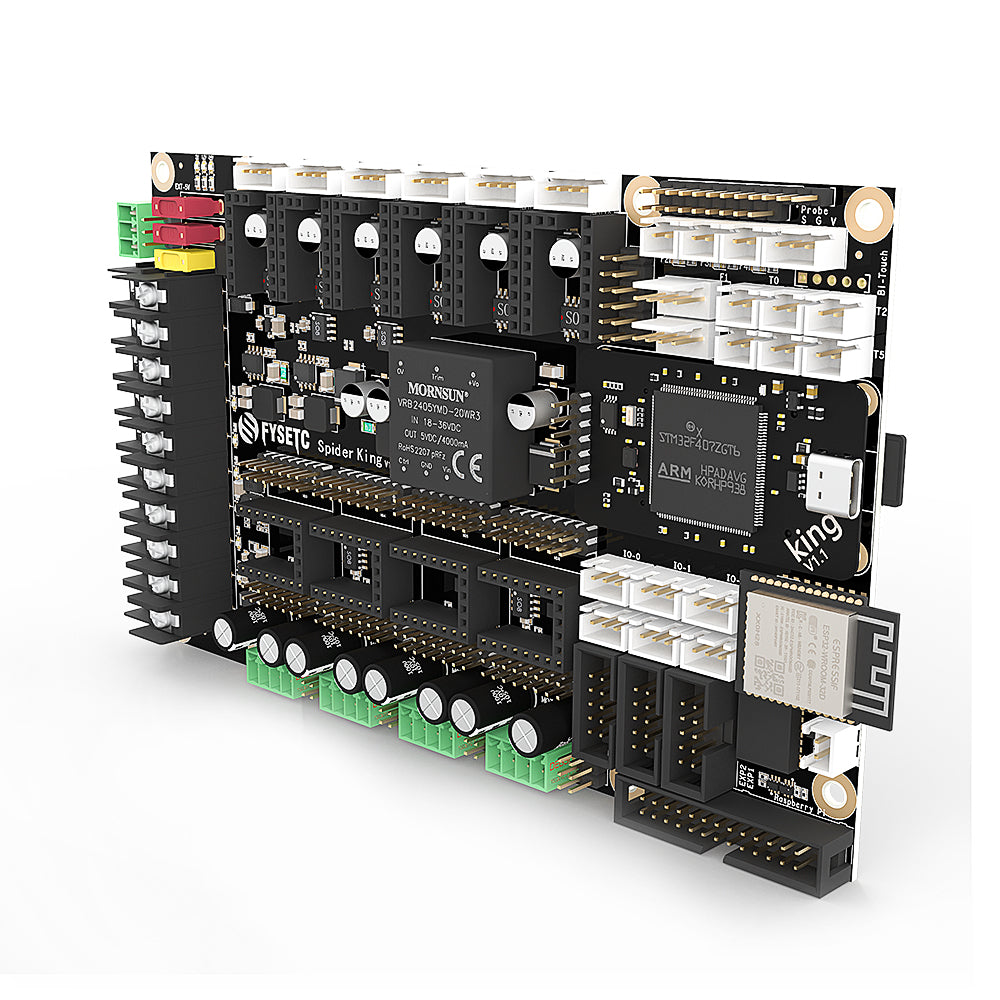

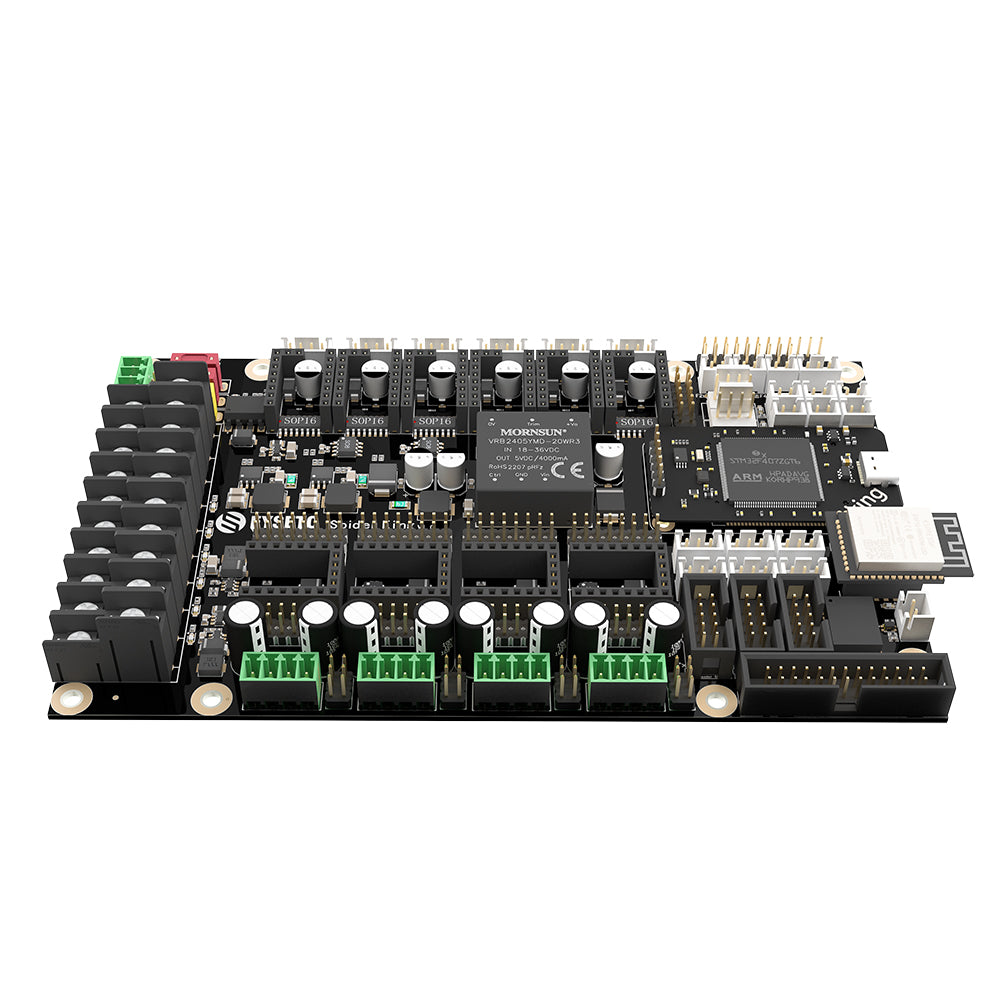

Pre-Sale FYSETC Spider king motherboard Big 5160 max 60V 10-axis Industrial-grade Motherboard Support UART SPI for Voron



 Please Note :this is the presale product , the shipping time 30days!!!!!and if you choose without the core board,Need to configure the core board by yourself!!



Package List

Set 1:Motherboard +without the Driver

Set 2:Motherboard + 8*TMC2209+2*Big 5160

Set 3:Motherboard + 6*TMC2209+4*Big 5160

Set 4:Motherboard + 2*Big 5160

Set 5:Motherboard +4*Big 5160

Set 6:Motherboard +8*TMC2208+2*Big 5160

Set 7:Motherboard +6*TMC2208+4*Big 5160

Set 8:Motherboard +8*TMC2209+2*Big 5160+RGB MINI12864 White on RGB

Set 9:Motherboard +6*TMC2209+4*Big 5160+RGB MINI12864 White on RGB

Set 10:Motherboard +8*TMC2208+2*Big 5160+RGB MINI12864 White on RGB

Set 11:Motherboard +6*TMC2208+4*Big 5160+RGB MINI12864 White on RGB





Features

*Compact size: 177mm x 108mm

*STM32F407 default onbard,F446、H743、4x RP2040 optional

*10 stepper drivers support, 6x 3A/28V Max,4x 6A/60V Max

*
Intelligent identification of driver type, automatic switching of UART/SPI channel

*
28V input max,12V@3A DC-DC,5V@3A DC-DC,5V@4A Isolated DC-DC ,Separate VIO power supply circuit for stepper motor

*
Three car fuses for hot bed input / main power input / Motor Power Input

*Limit switch socket 24V/5V/3.3V optional, ready for more other equipment, such as -inductive sensor, BL-Touch

*
XH2.54 High temperature resistance connectors

*
12x PWM capable power mosfet outputs (1 for HotBed, 5 for Heat-End, 6 for fans)

*Up to 6 temperature sensors support

*Up to 6 ways PWM fans

*
5V-RGB led (NEO-PIXEL/WS2812/SK6812)

*
RepRapDiscount SmartController compatible pin header on board(EXP1 & EXP2)

*UART/SPI Raspberry Pi connector (including Isolated 5V@4A power supply)

*Onboard micro-SD card

*Type-C USB connector

*EXP1 & EXP2 have more multiplexing functions, such as USART, I2C, CAN

*SD card & USB upload support

*A 4.7kOhm 0.1% temperature sensor pull up resistor is used, PT1000 can be connected directly. For PT100, an amplifier board must be used.

*5000V digital isolation between all motor drive sockets Tim and control core

*3750V optocoupler isolation between all MOSFET outputs and the control core
